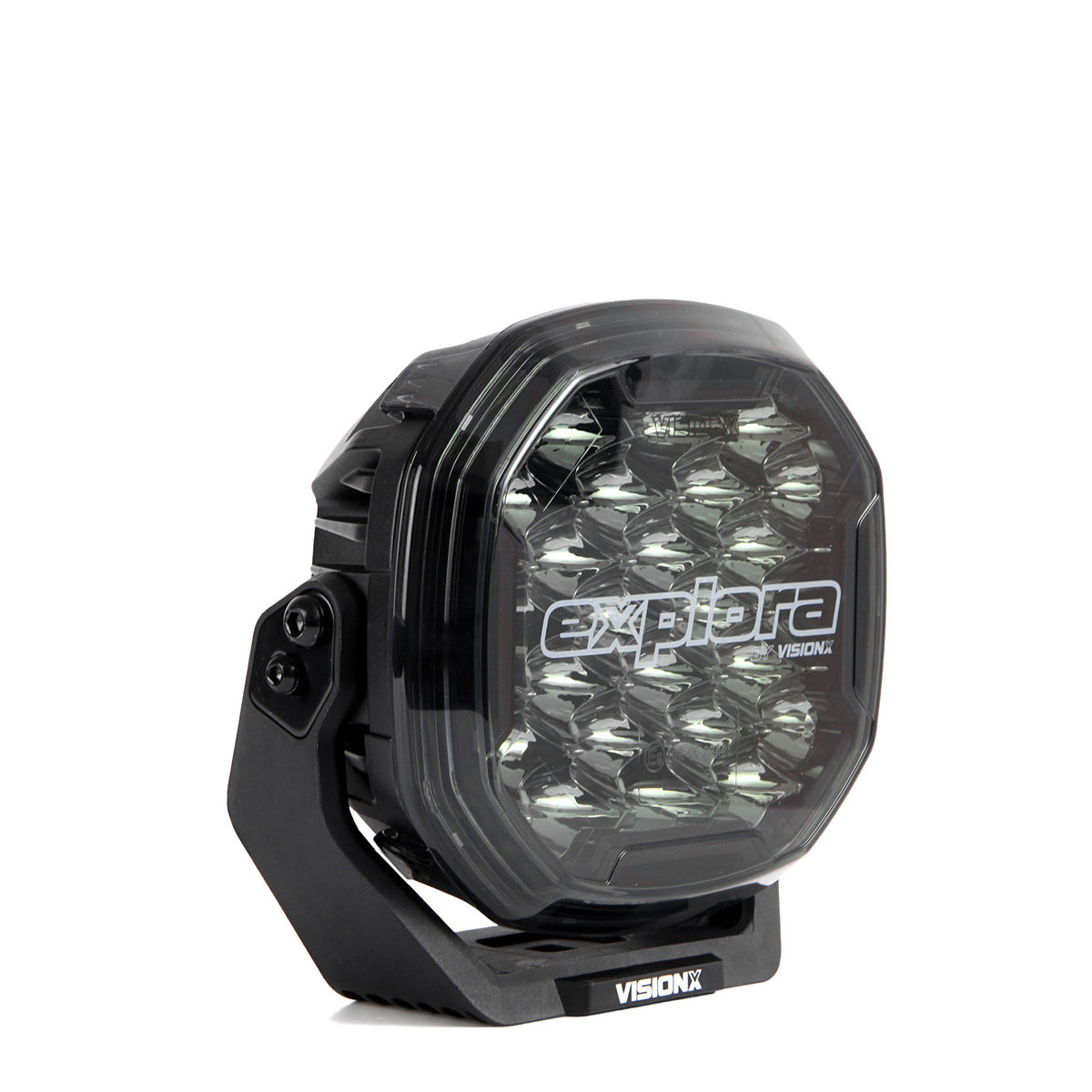

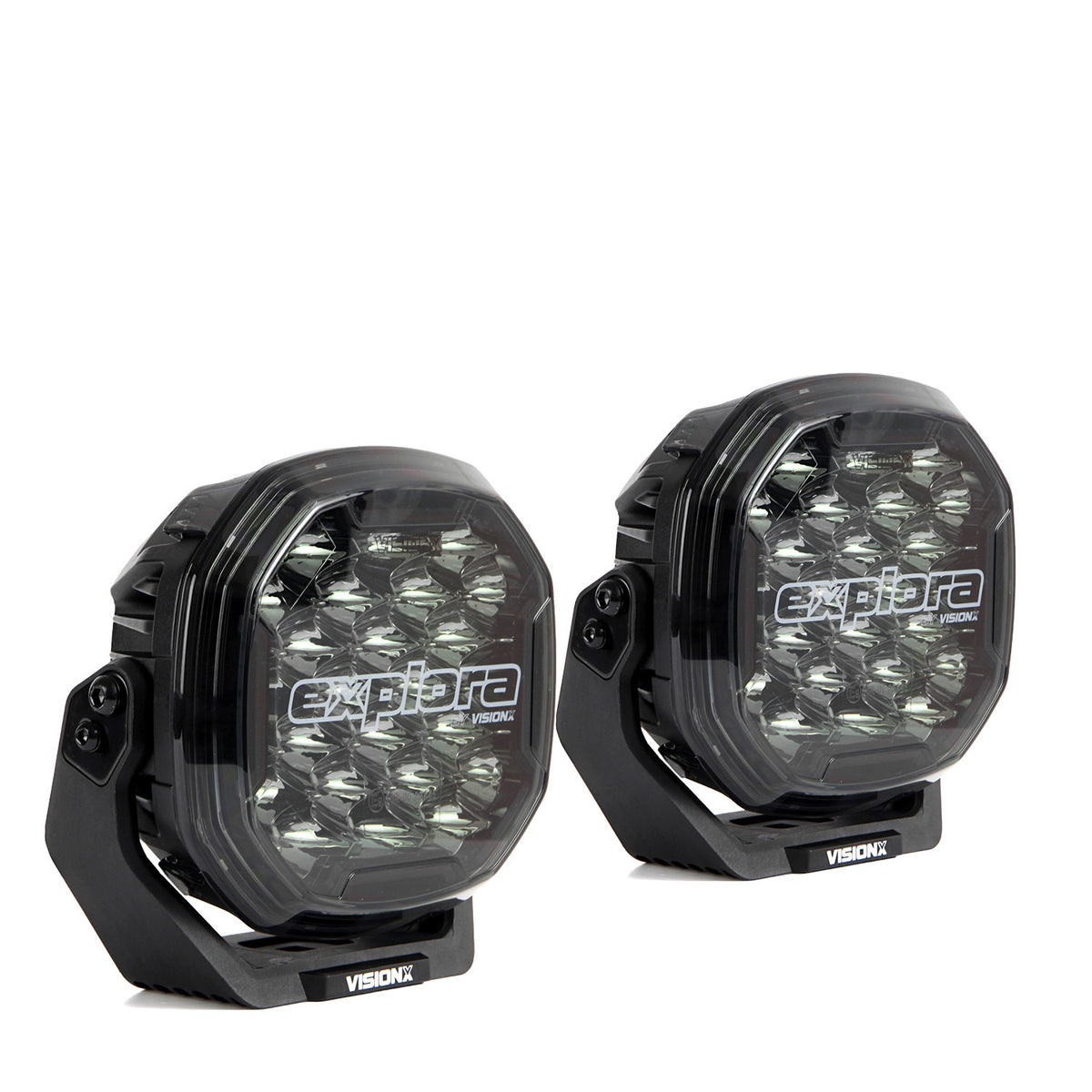

Explora Series lights were purpose-built to deliver modern styling in a completely customizable platform giving everyday drivers unprecedented versatility at an affordable price point. Switchback dual-color DRLs, multi-color lens options, and multi-color trim rings provide unlimited customization that are guaranteed to match you build. Add to that an impressive beam performance and internal relay system and you can clearly see why Explora is a whole new breed.

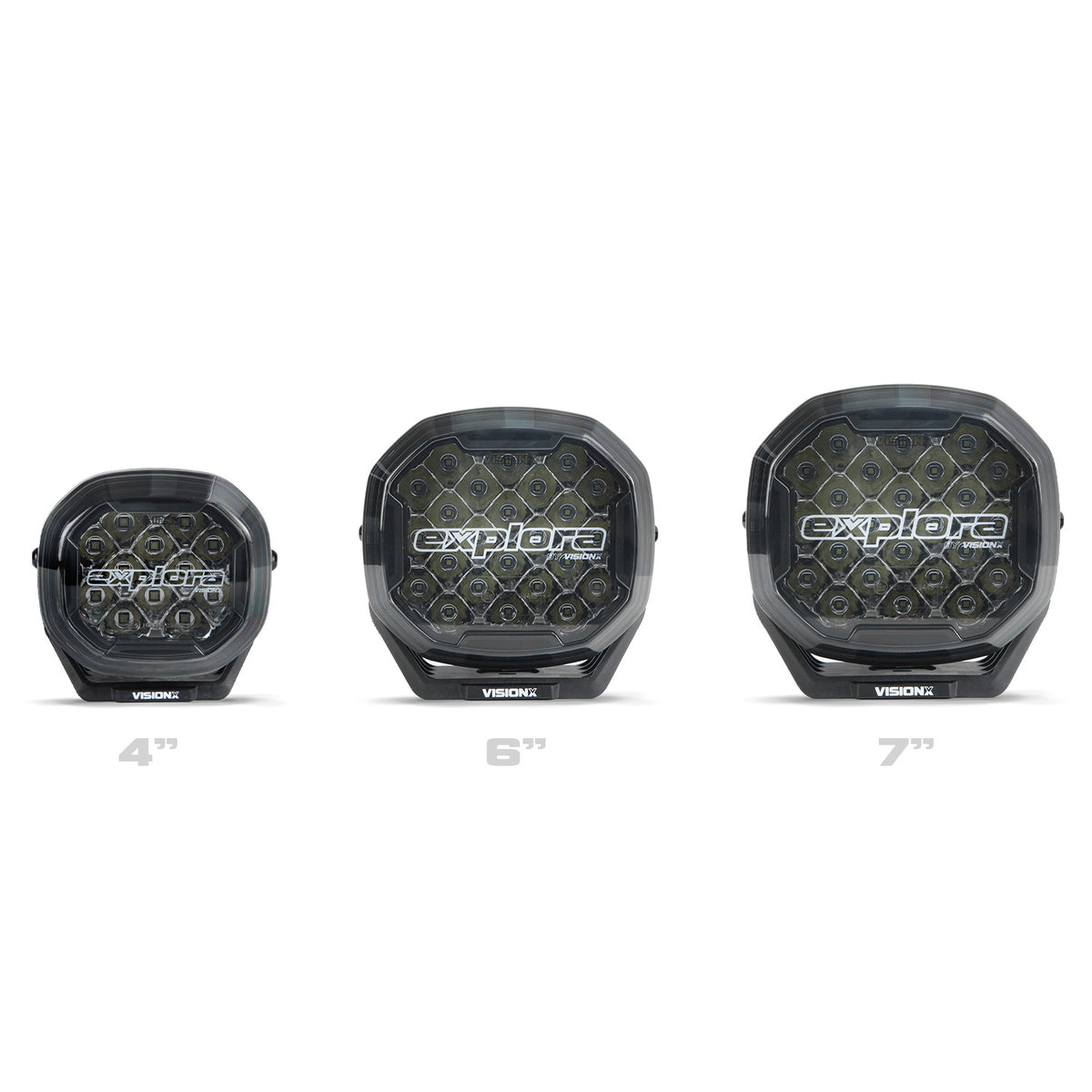

Explora Light Pods are available in 4, 6, & 7 inch pod sizes and feature a next-generation circuit design. The 4-position DRL can be run in white, amber or "switch-back mode" where the white DRL switches to amber and flashes in sync with your factory turn signal. The advanced circuit design utilizes an internal mosfet eliminating the need for external relays, making wiring with or without our plug-&-play wiring harnesses a breeze.
Interchange snap-on lens covers and silicone trim rings are available for all light sizes to enable more customization than ever before. Lenses are available in yellow, clear, smoke, or black-out and trim rings are available in red, orange, yellow, green, blue, & pink.
X-Drive LEDS : 6,000 Lumens (ea)
Our ultra-reflective honey comb style optic is backed by twelve high-output LEDs to produce a powerful driving beam.

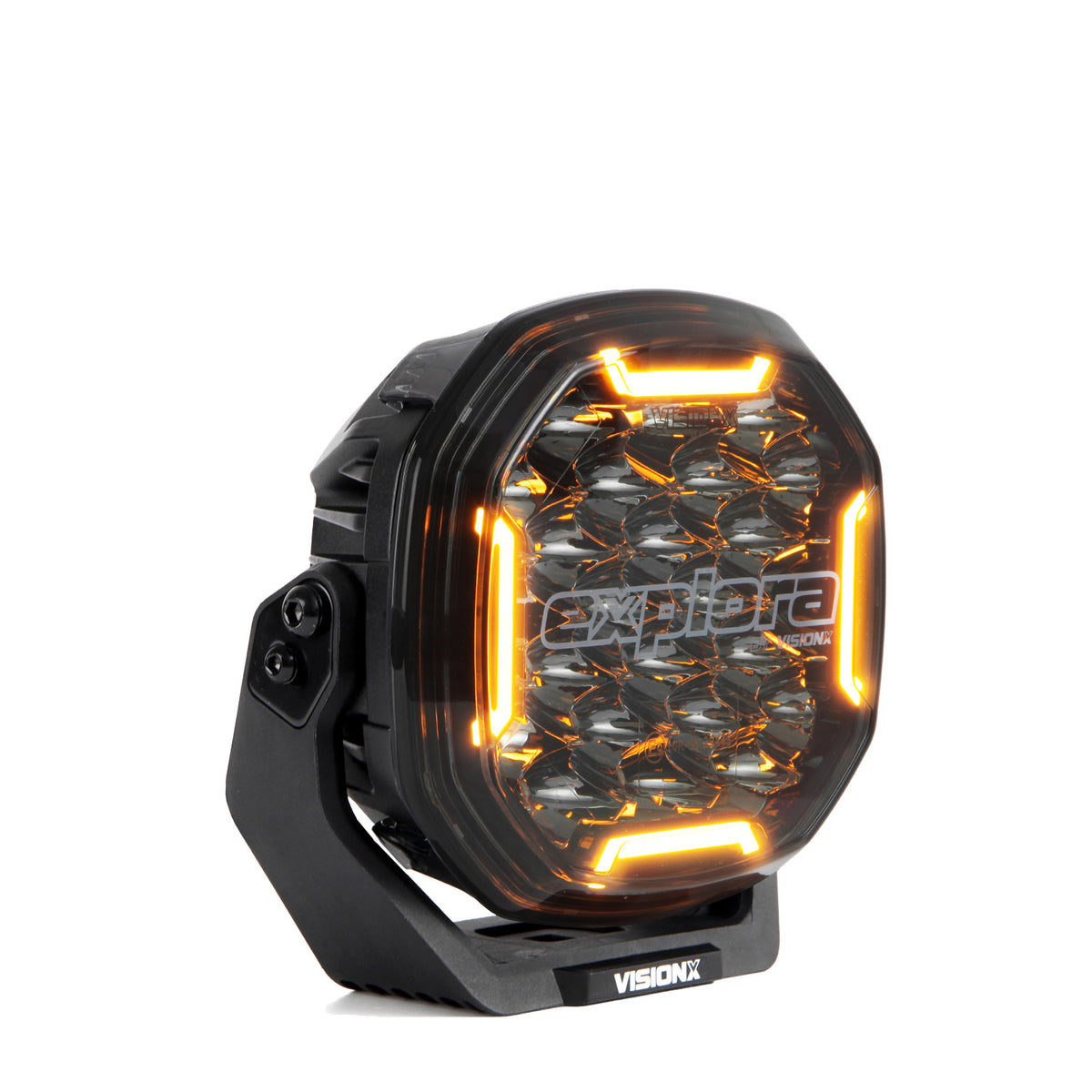

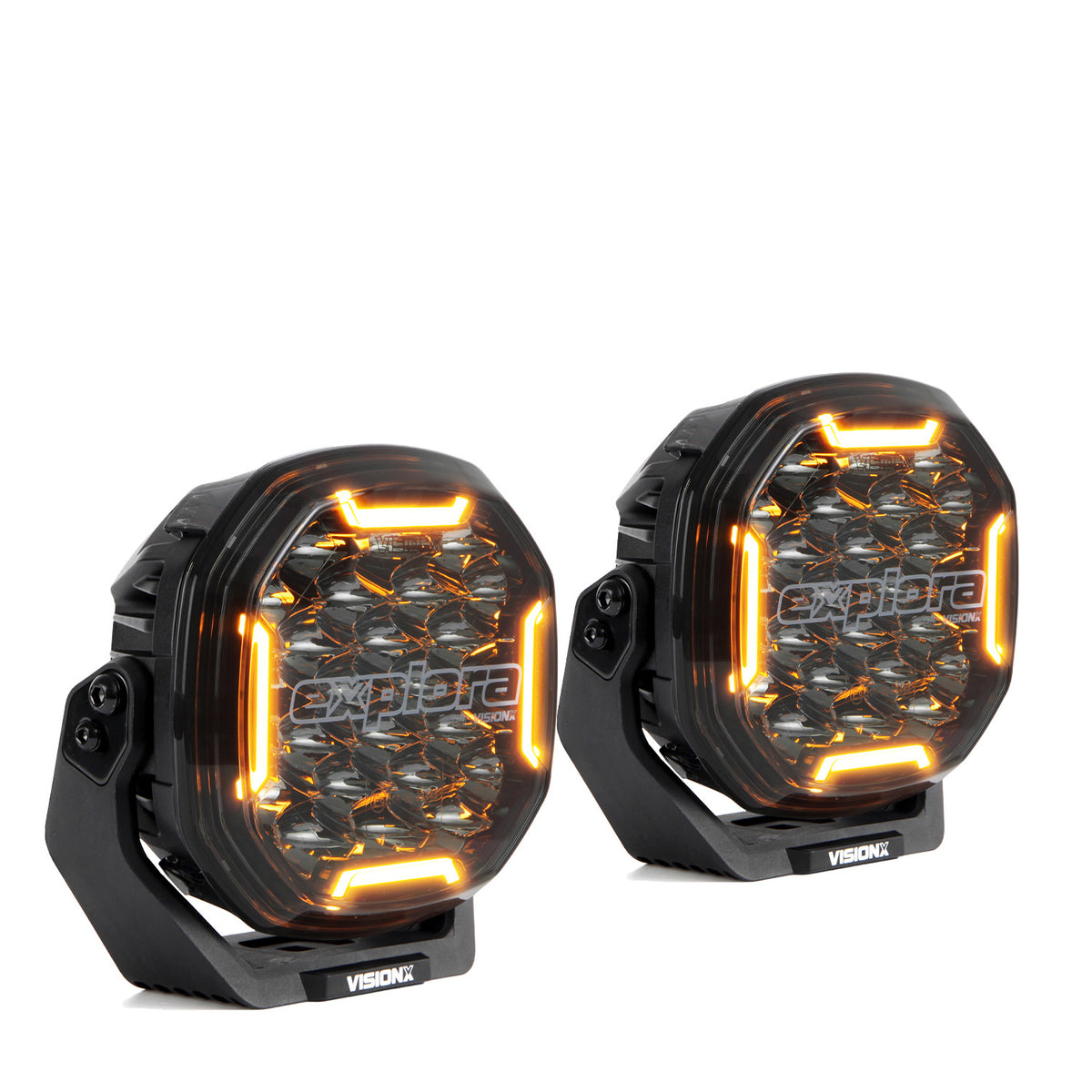

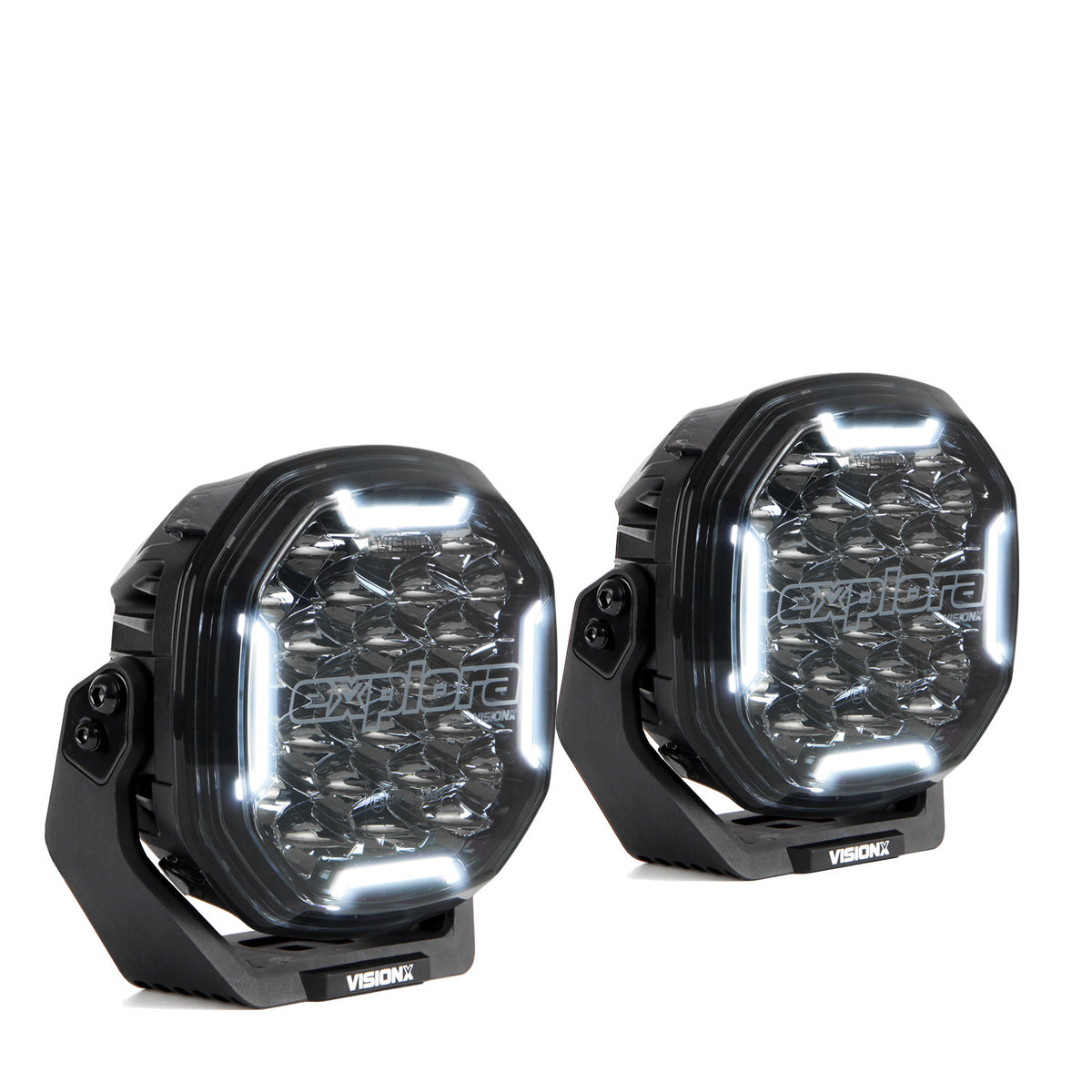

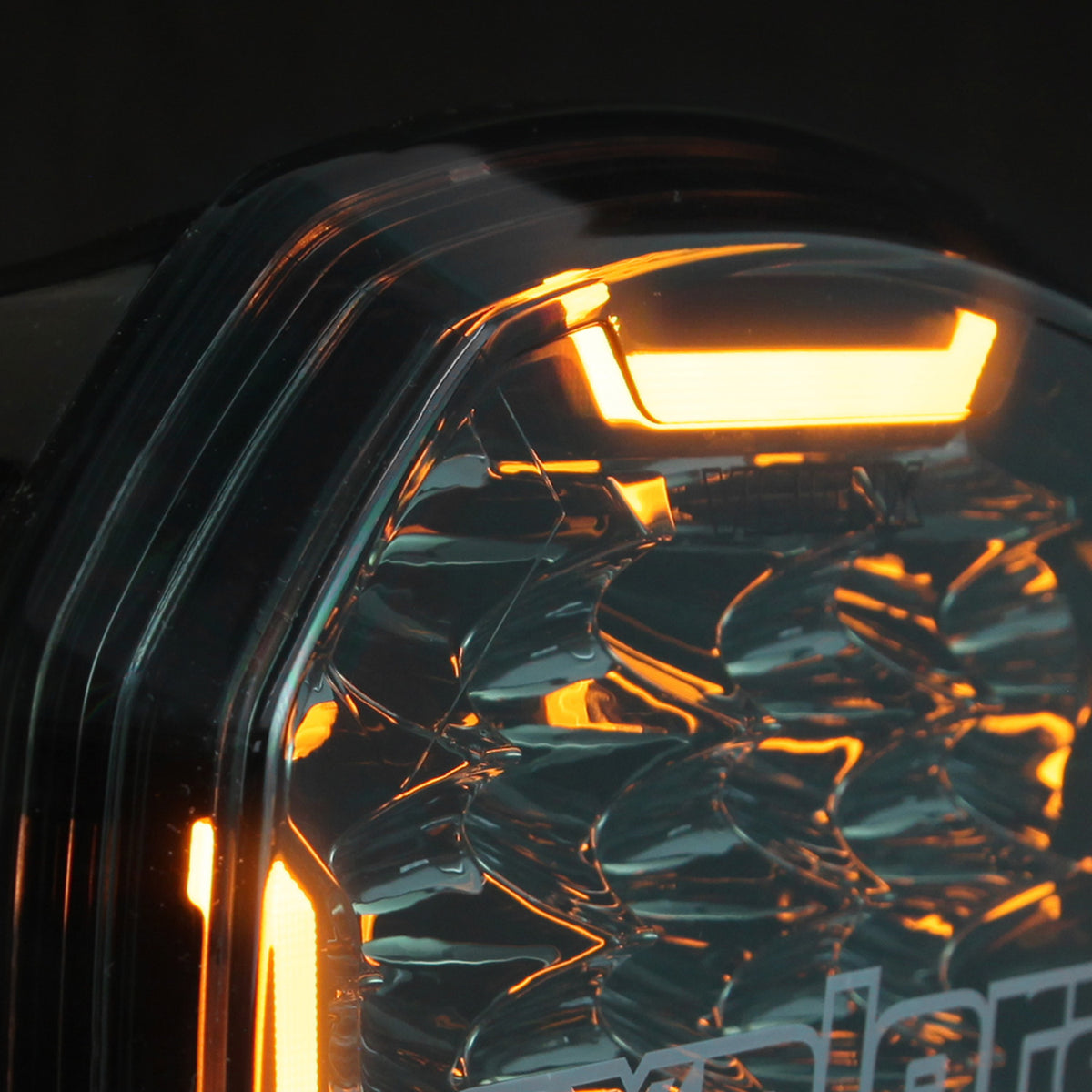

Dual-Color DRL
A unique four edge DRL that can be switched between a crisp white output or amber to match your vehicles OEM marker lights.

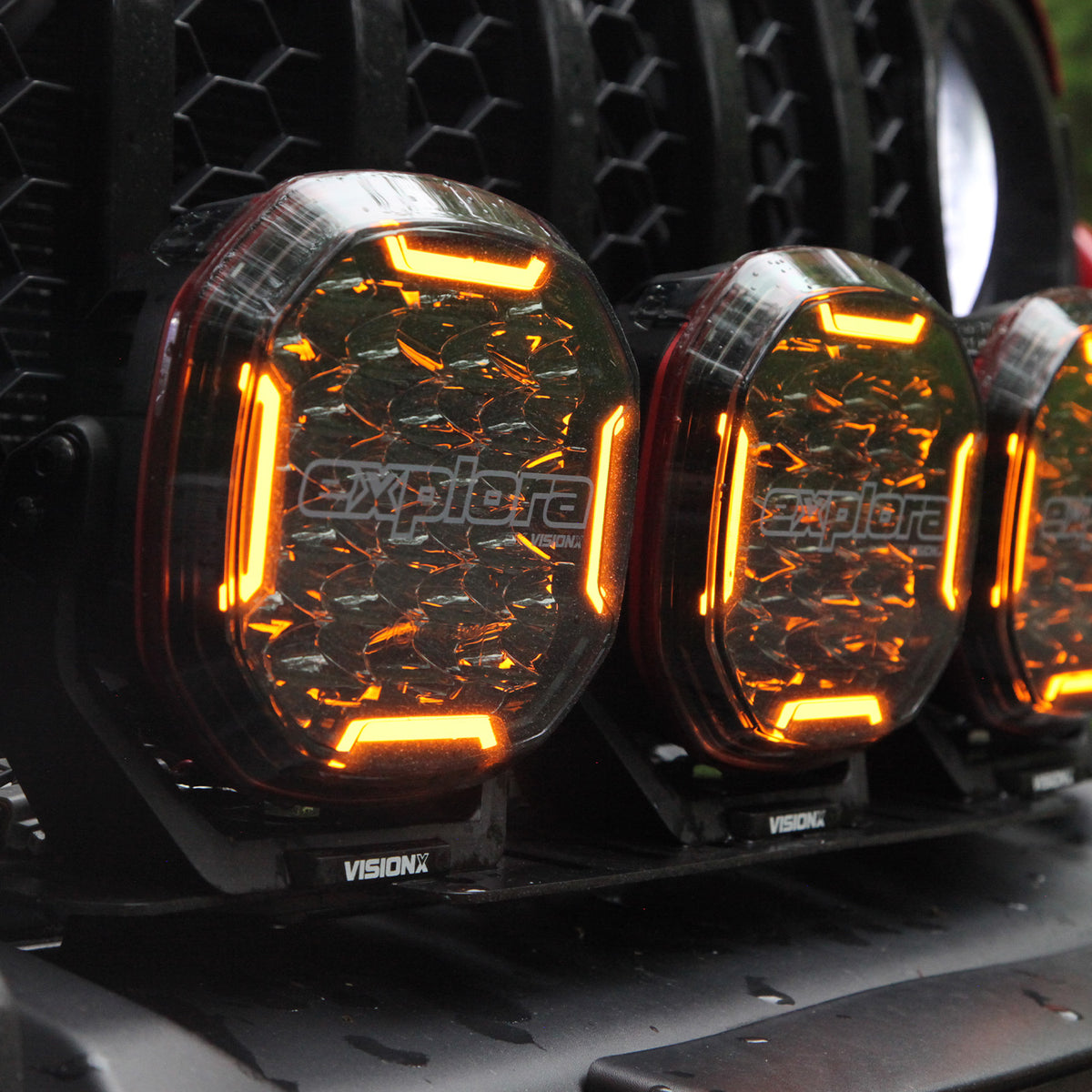

Switch-back Technology
The amber DRL takes priority when both white & amber DRL’s are powered and can flash in sync with your turn signals.

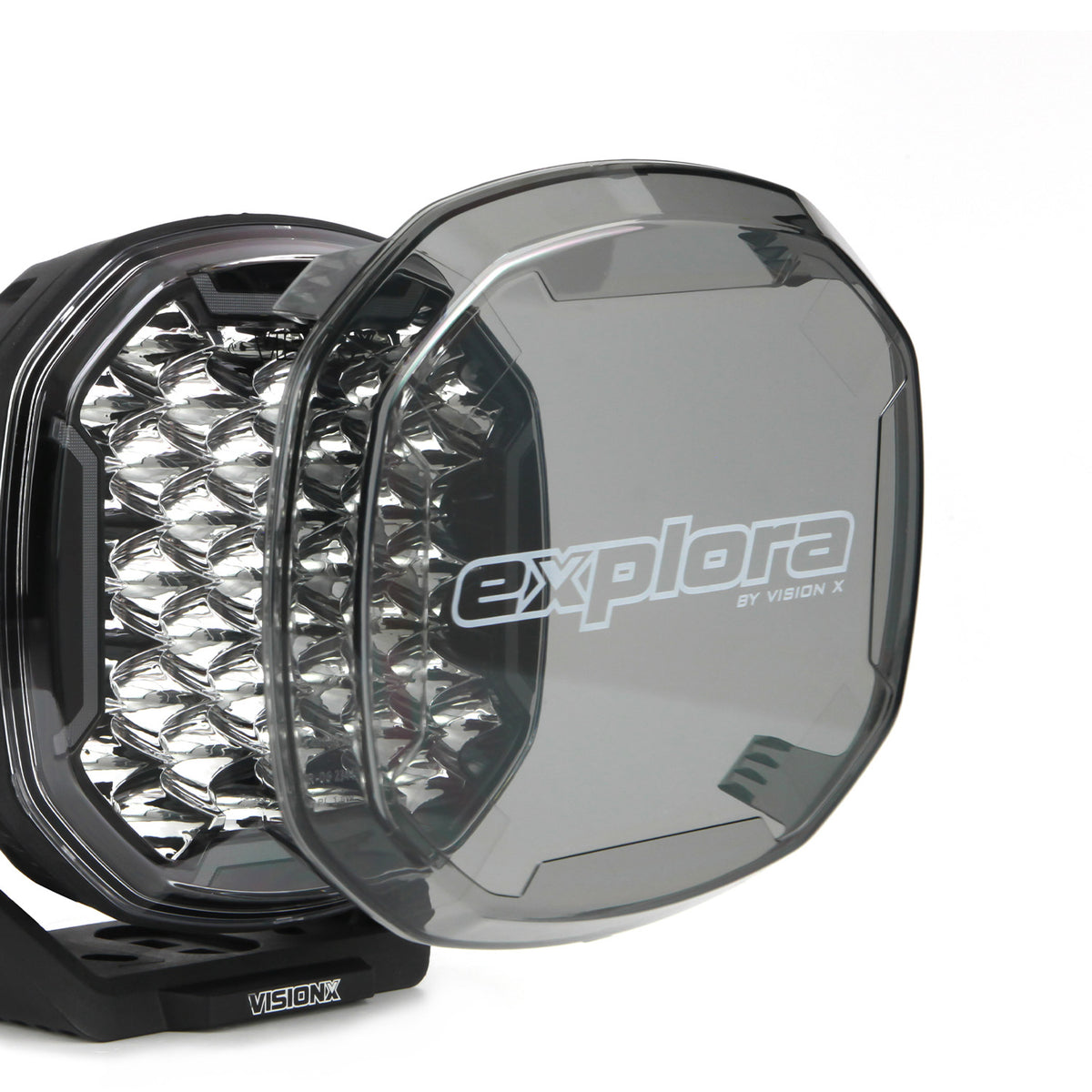

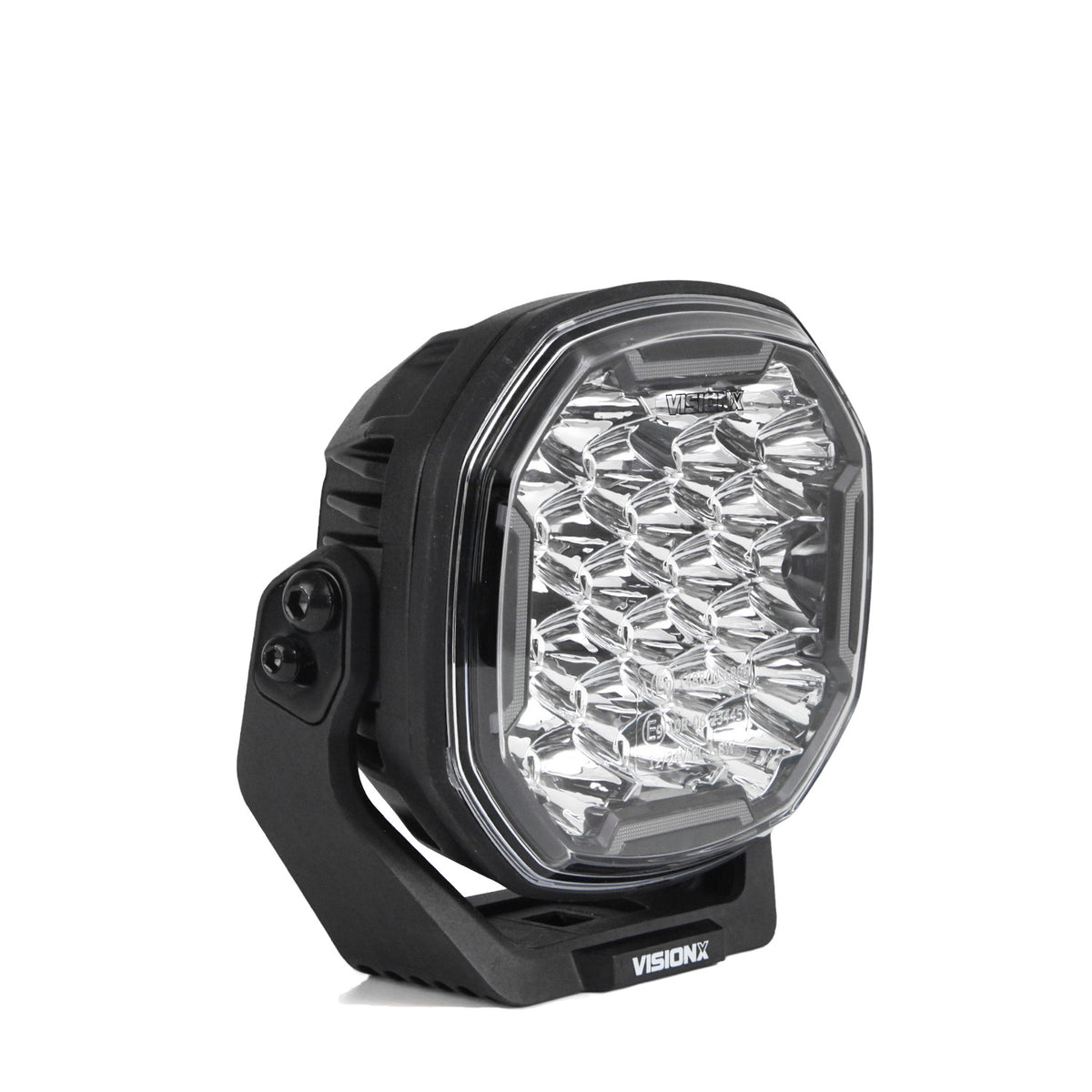

Swappable Lens System

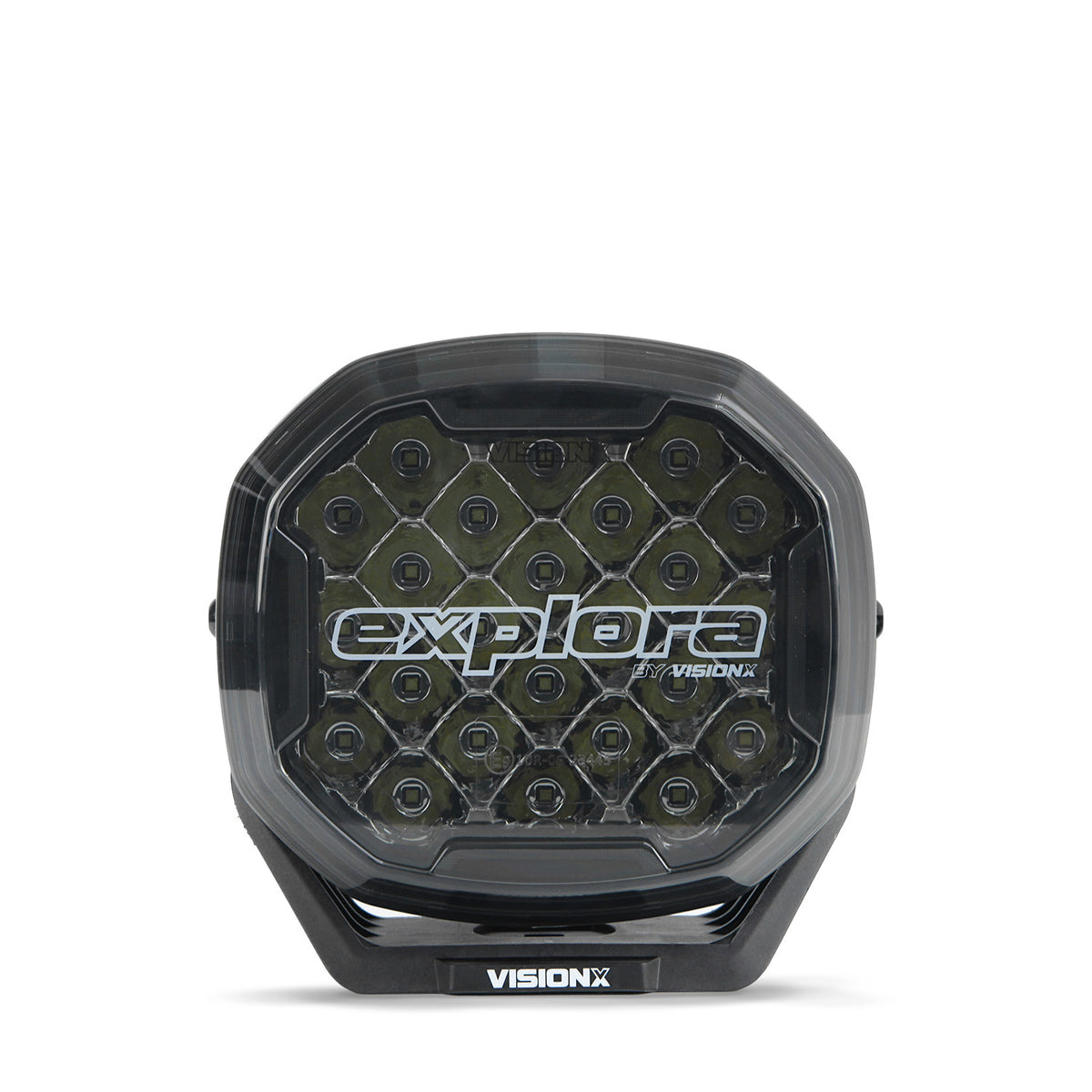

Each Explora light will come equipped with a smoked lens that can be swapped to clear (protective) or selective yellow (for dust).

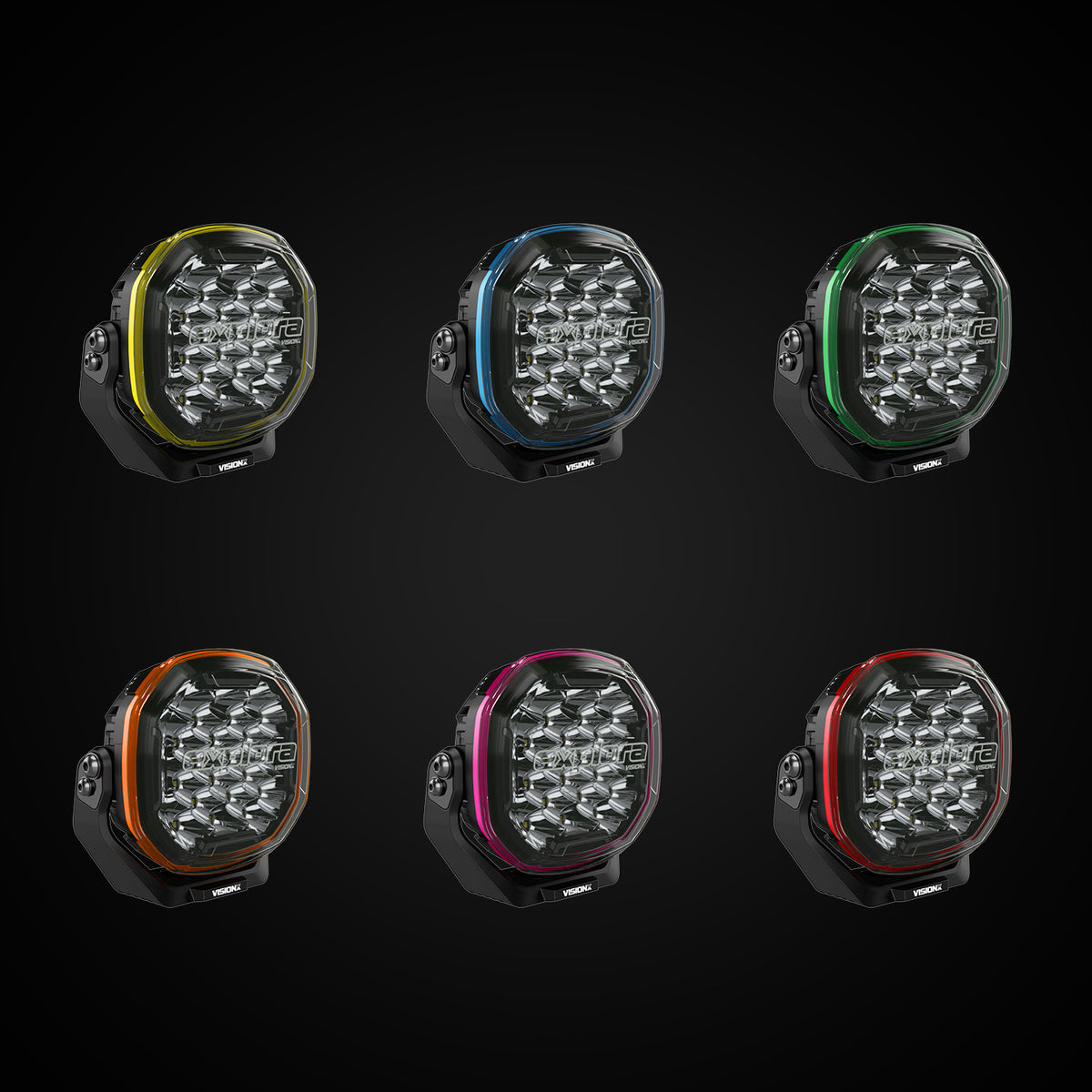

Custom Trim Colors
Customize the look of your Explora lights with our colored rubber trim rings that completely surround the outer portion of the lens.

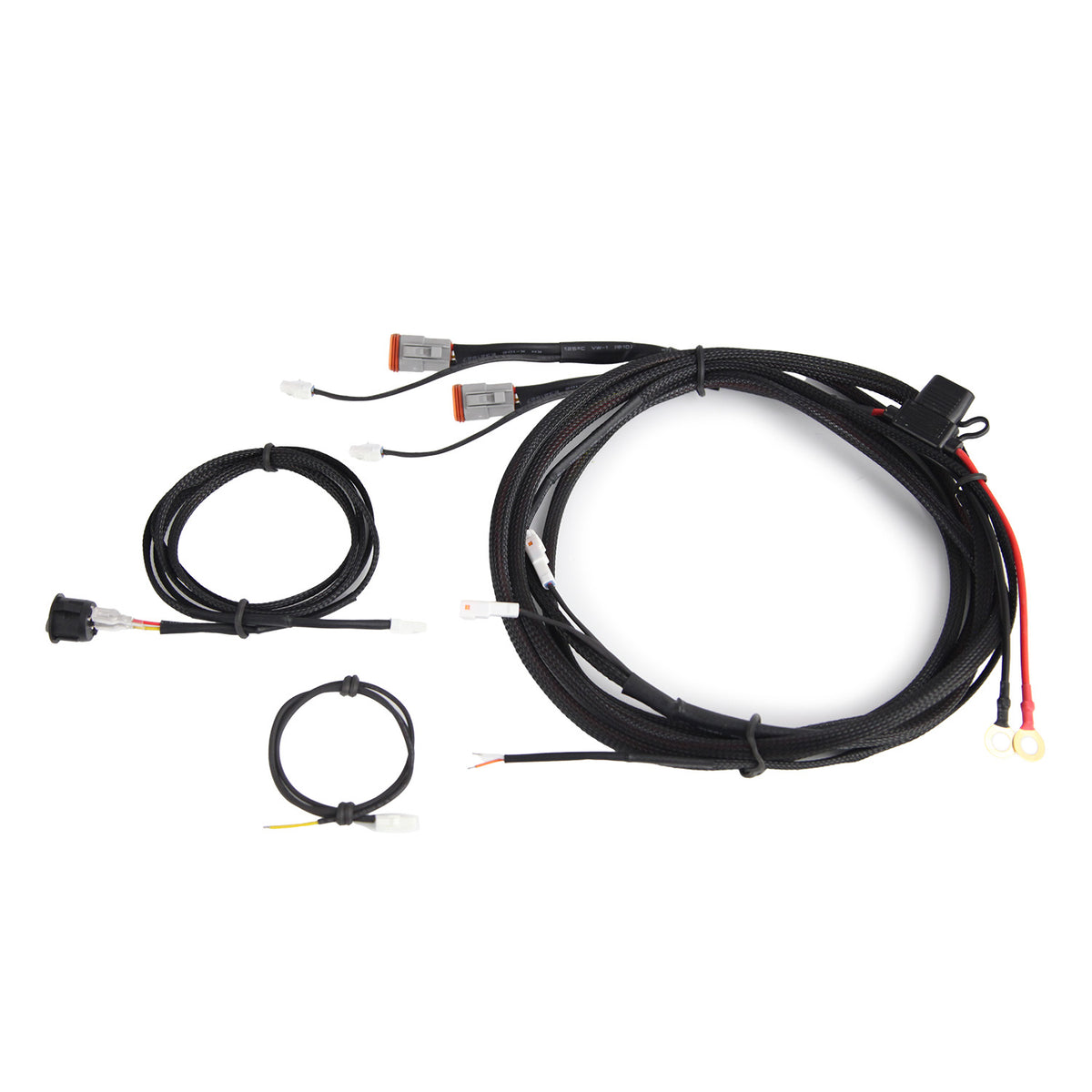

Internal Relay With Modular Switching
No external relay needed, our modular wiring harness allows you to switch on the lights via a trigger wire or a universal switch.
Specifications (Single | Pair)
LED's: CREE XTE (5W each)
Watts: 64W | 128W
Amp Draw: 5.33A | 10.67A
Raw Lumens: 6,000 | 12,000
Beam Distance: 886' (270m) | 1,214' (370m)
Beam Width: 98' (30m) | 131' (40m)
Connector: 3-pin DT
Color Temperature: 6000K
Operating Voltage: 11-32 VDC
Pod Size: 6.1" Round x 2.8" Deep
Pod Weight: 3.1 lbs | 6.2 lbs
IP Rating: IP68 & 69K Waterproof Submersible & High-Pressure Spray
EMC: CISPR 25, CE, UKCA Compliant
Warranty: Limited Lifetime
Downloads
Click Here For Instructions
What’s Included
Single light pods include:
(1x) Explora Driving Light
(1x) Smoked Lens Cover
(1x) Set of Black Zinc Mounting Hardware
(1x) Universal Wiring Pigtails
Pair of light pods include:
(2x) Explora Light Pods
(2x) Smoked Lens Cover
(2x) Sets of Black Zinc Mounting Hardware
(1x) 2-Light Modular Wiring Harness
