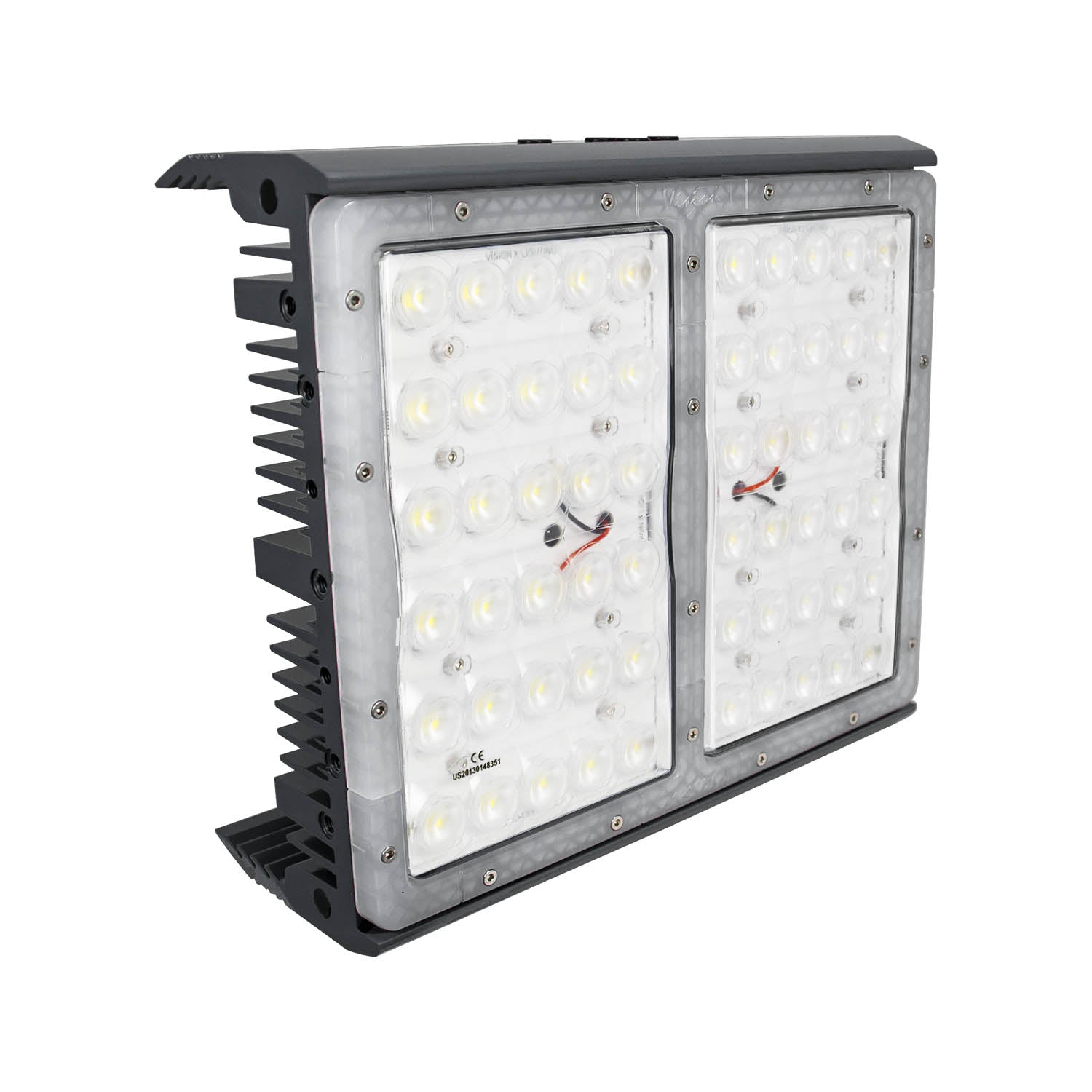

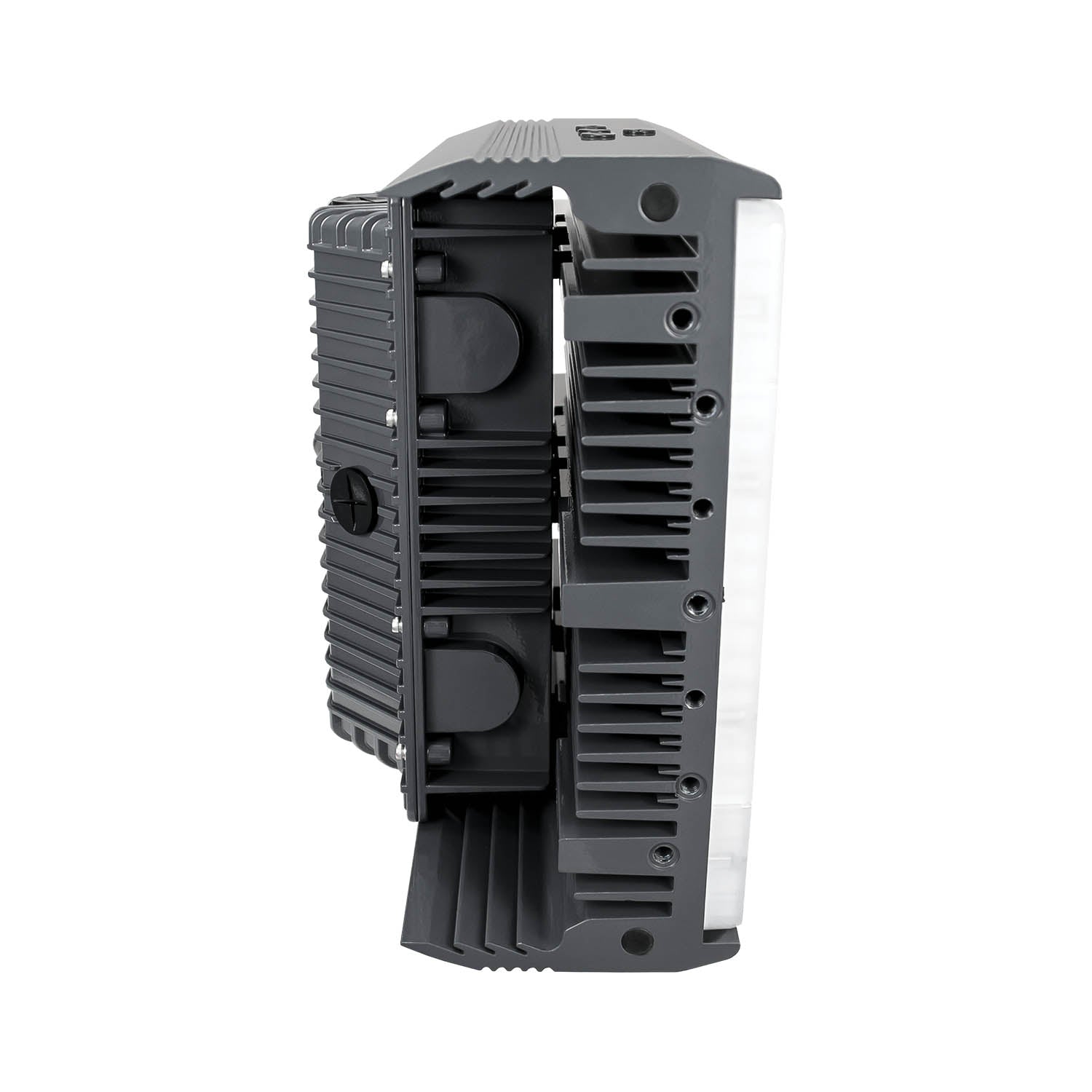

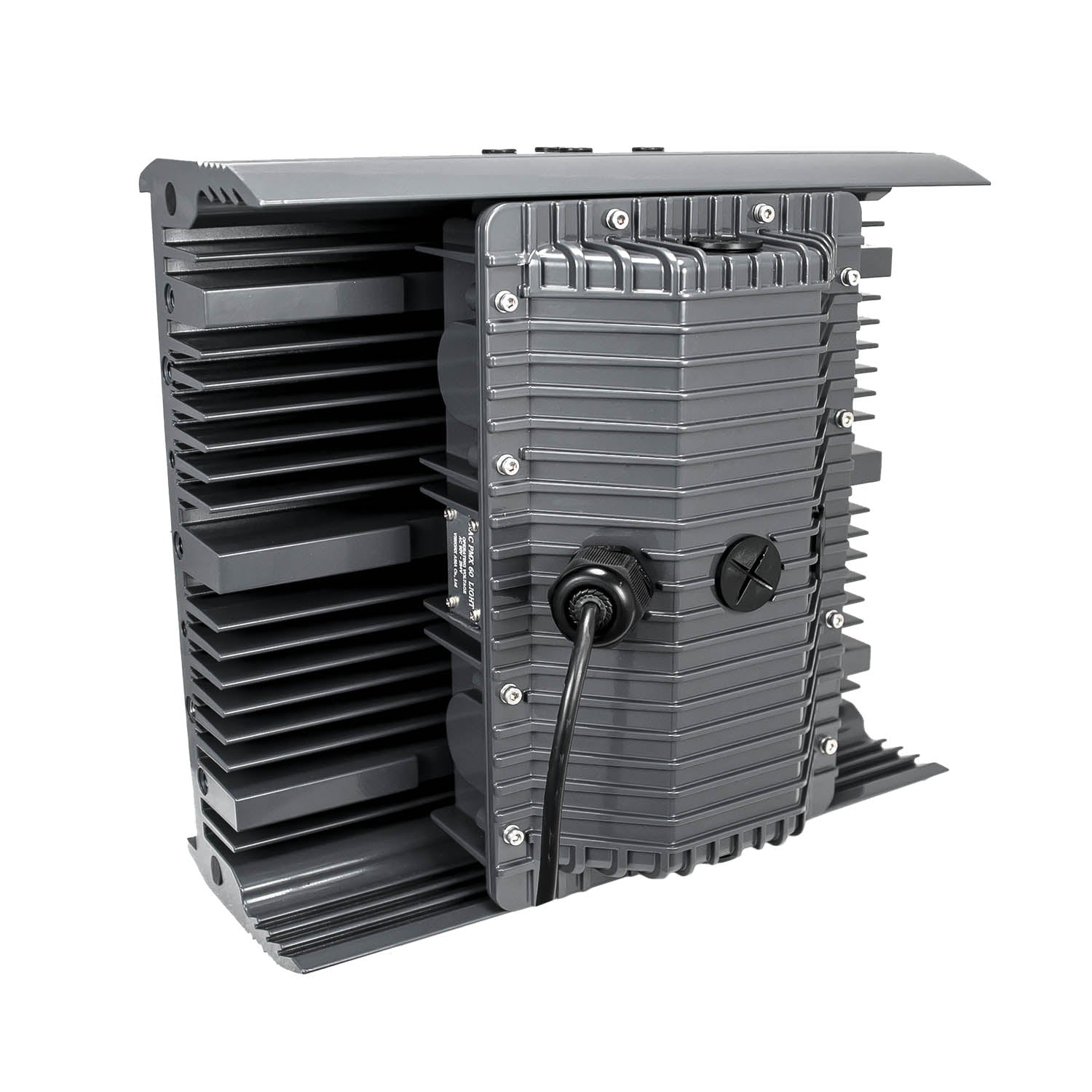

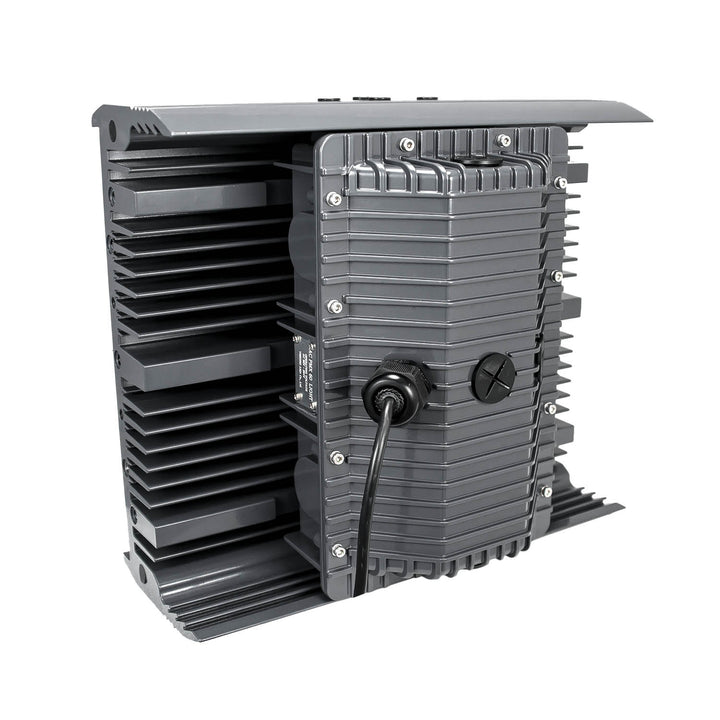

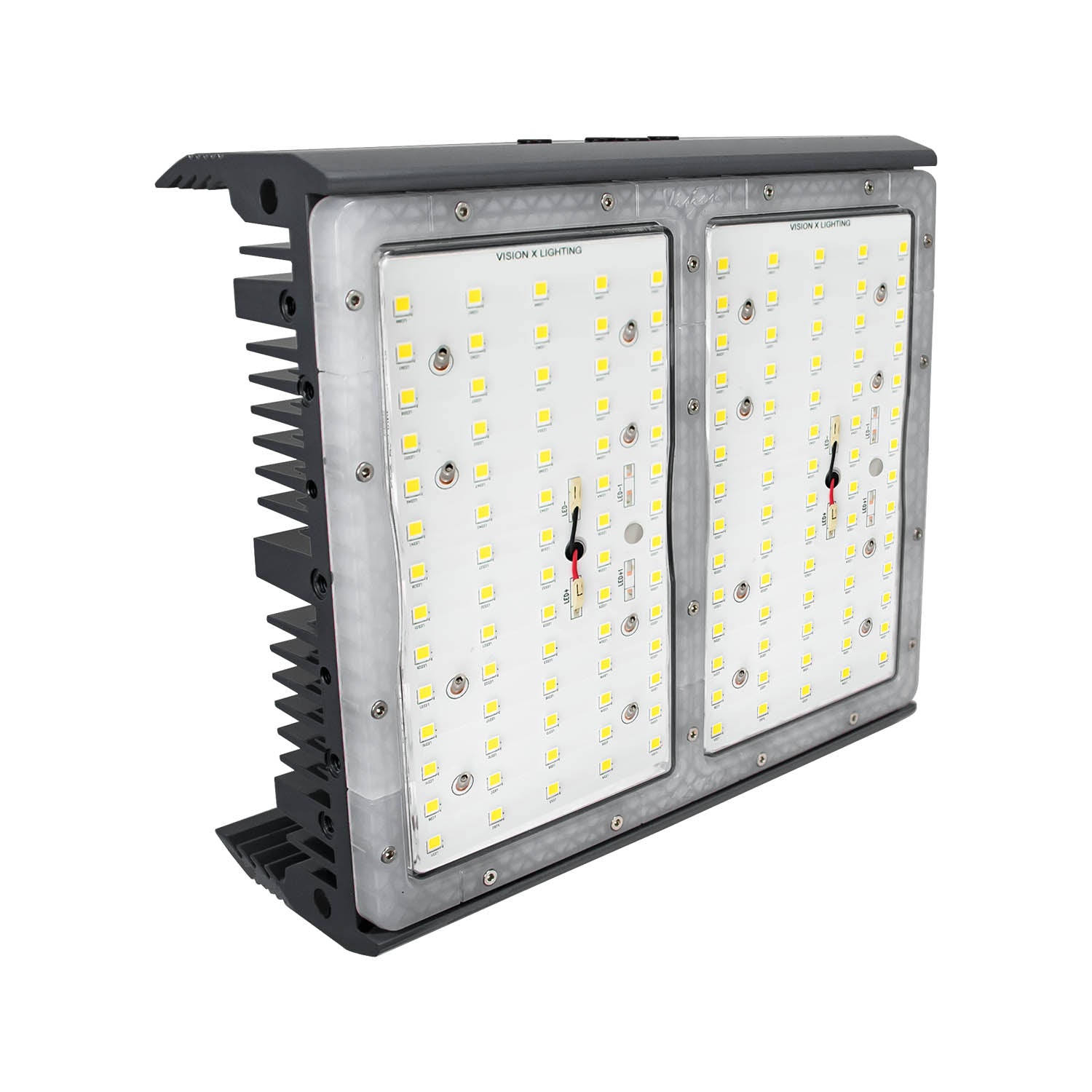

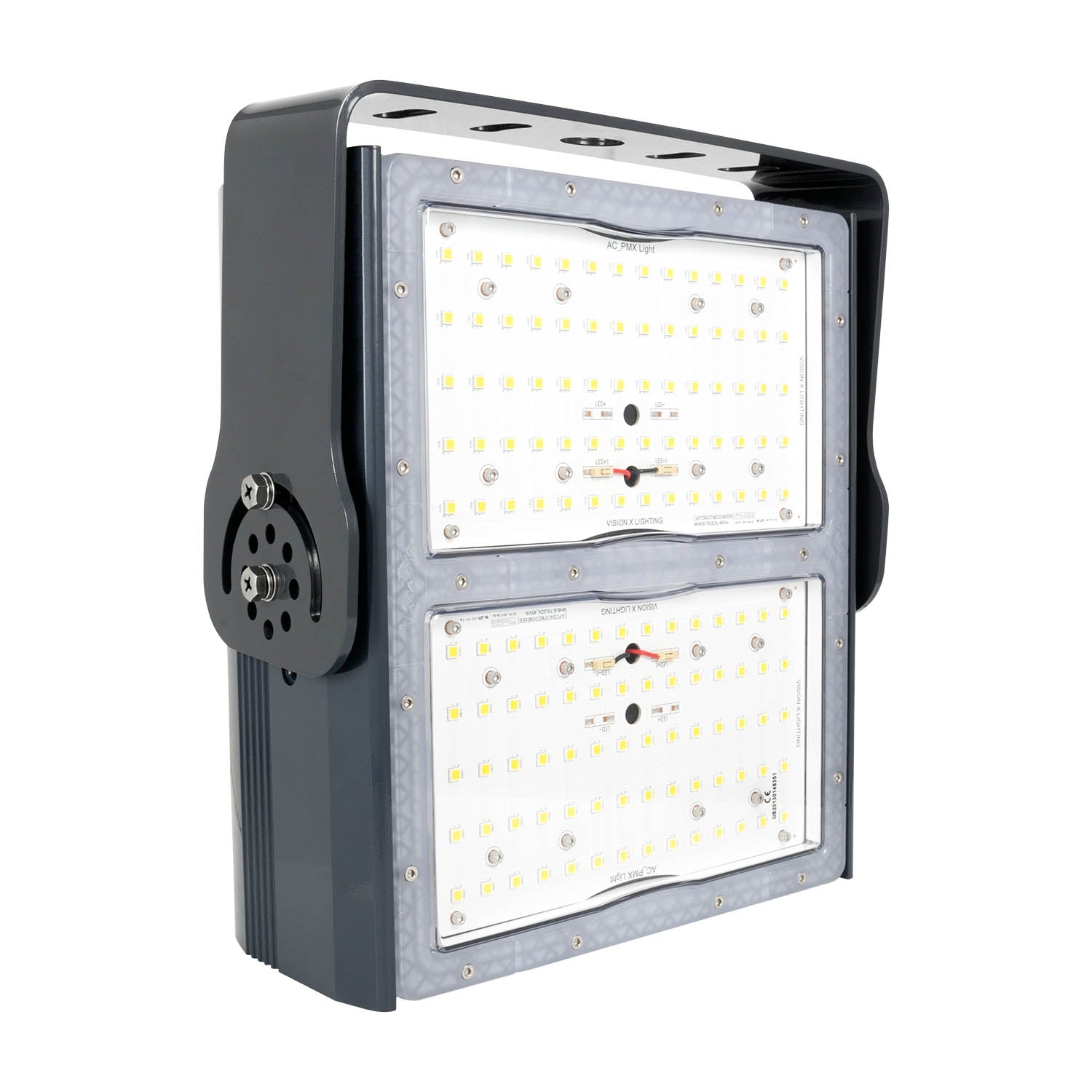

The Vision X PitMaster AC 280W Heavy Duty LED Flood Light is engineered to deliver uncompromising performance in the world's harshest industrial environments. Designed for mining equipment, industrial facilities, commercial work sites, ports, rail yards, oil & gas operations, material handling equipment, and heavy machinery, the PitMaster combines industry-leading light output with exceptional durability for reliable performance in demanding applications. Available in both Standard AC Voltage and High Voltage configurations, the PitMaster can be configured to meet the lighting requirements of virtually any heavy-duty operation.

Producing up to 36,000 lumens, the PitMaster utilizes high-efficiency LEDs to deliver outstanding illumination while maximizing lumens per watt and minimizing energy consumption. Available with Ultra Wide Flood, Flood, and Wide Flood beam patterns, it provides optimized light distribution for equipment lighting, facility illumination, loading areas, maintenance bays, and large outdoor work zones. Four heavy-duty mounting configurations—including Side Mount (No Bracket), Standard Trunnion (21 Grms), Heavy Duty Trunnion (60 Grms), and Stainless Steel Heavy Duty Trunnion—allow the fixture to be tailored for virtually any installation while providing exceptional vibration resistance in harsh operating environments.

Key Features:

Up to 36,000 Lumens
High-efficiency LED technology delivers exceptional illumination with industry-leading lumens per watt, improving visibility while reducing power consumption.

Multiple Beam Pattern Options
Available in Ultra Wide Flood, Flood, and Wide Flood optics to optimize light distribution for heavy equipment, industrial facilities, maintenance areas, and large work zones.

Flexible Heavy-Duty Mounting

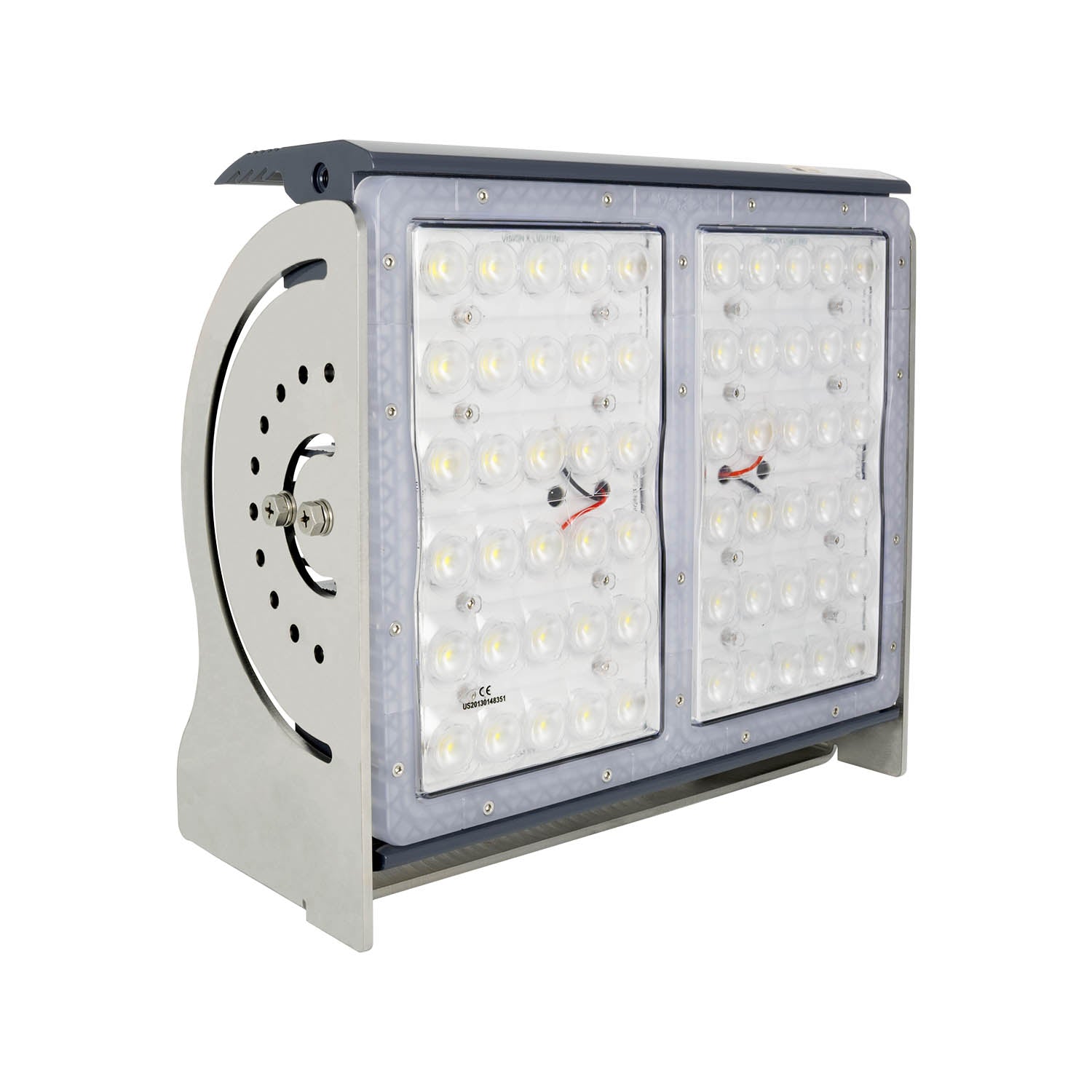

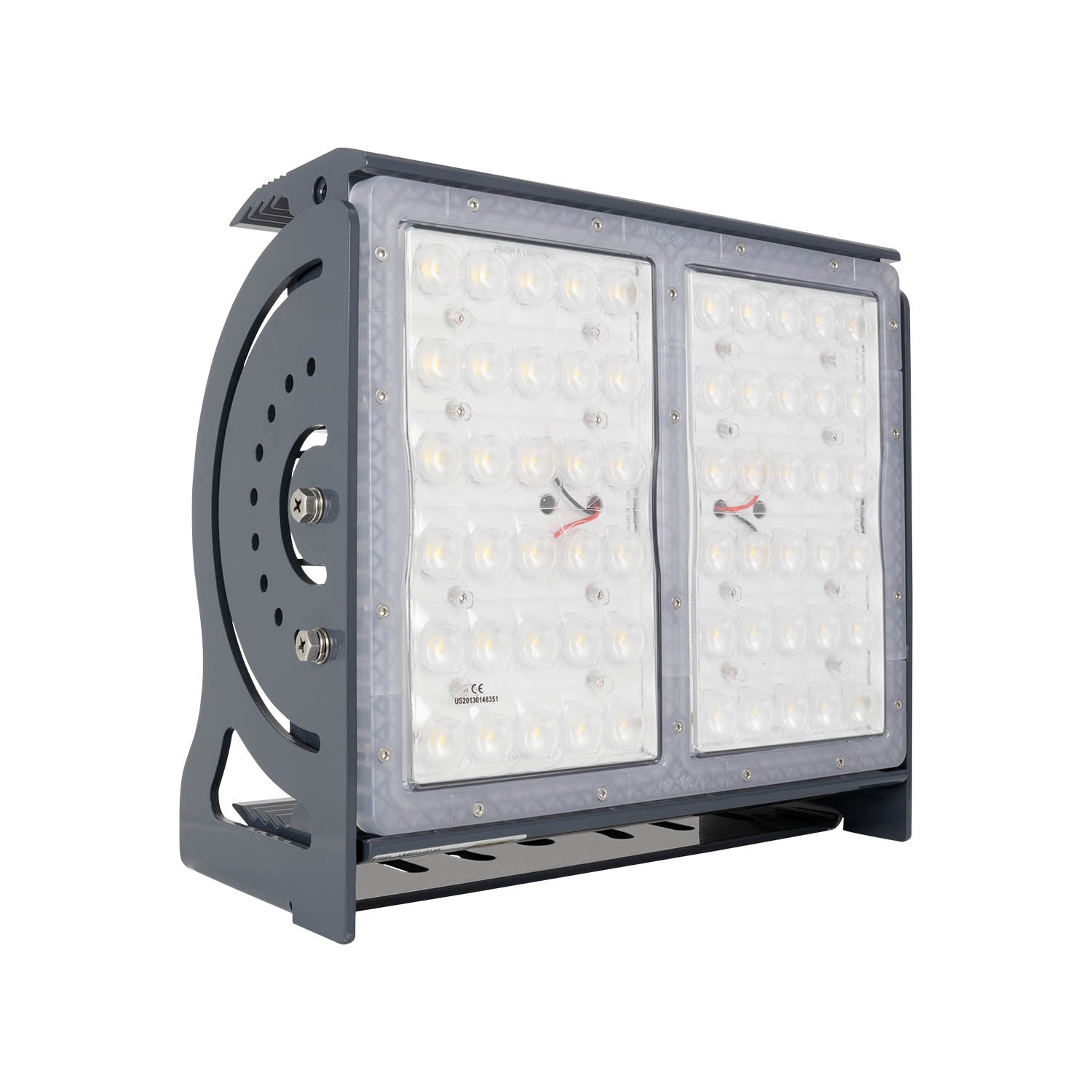

Choose from Side Mount (No Bracket), Standard Trunnion (21 Grms), Heavy Duty Trunnion (60 Grms), or Stainless Steel Heavy Duty Trunnion mounting options to accommodate virtually any application.

Standard & High Voltage Configurations
Available in both Standard AC Voltage and High Voltage models for compatibility with a wide range of industrial, commercial, and mining electrical systems.

Redundant Electrical Architecture
Dual circuit boards and redundant inverters help maintain light output in the event of a component failure, minimizing downtime and reducing maintenance costs.

Built for Extreme Environments
A rugged housing with a double-coated marine-grade powder coat finish provides outstanding resistance to corrosion, impact, vibration, moisture, and the harshest operating conditions.

Specifications

LED's: XP-LHD (CREE)
Watts: 280W
Amp Draw: 2.43A @ 115V AC, 1.22A @ 230V AC, 1.01A @ 277V AC
Raw Lumens:  36,000 lm
Beam Pattern:  Flood 40°/ Wide Flood 60° / Ultra-Wide Flood 180°
Connector: 3/4″ NPT Quick Connect/Disconnect
Color Temperature: 5000K
Operating Voltage: 90-277V AC (LV - Low Voltage), 480V AC (HV - High Voltage)
Light Size: 7.17x13.54x12.24"
Light Weight: 60 lbs
Certifications: IP68 / IP69K, CISPR 25
Warranty: 3 years

What’s Included
(1x) PitMaster Light
(1x) Optional Mounting Bracket
