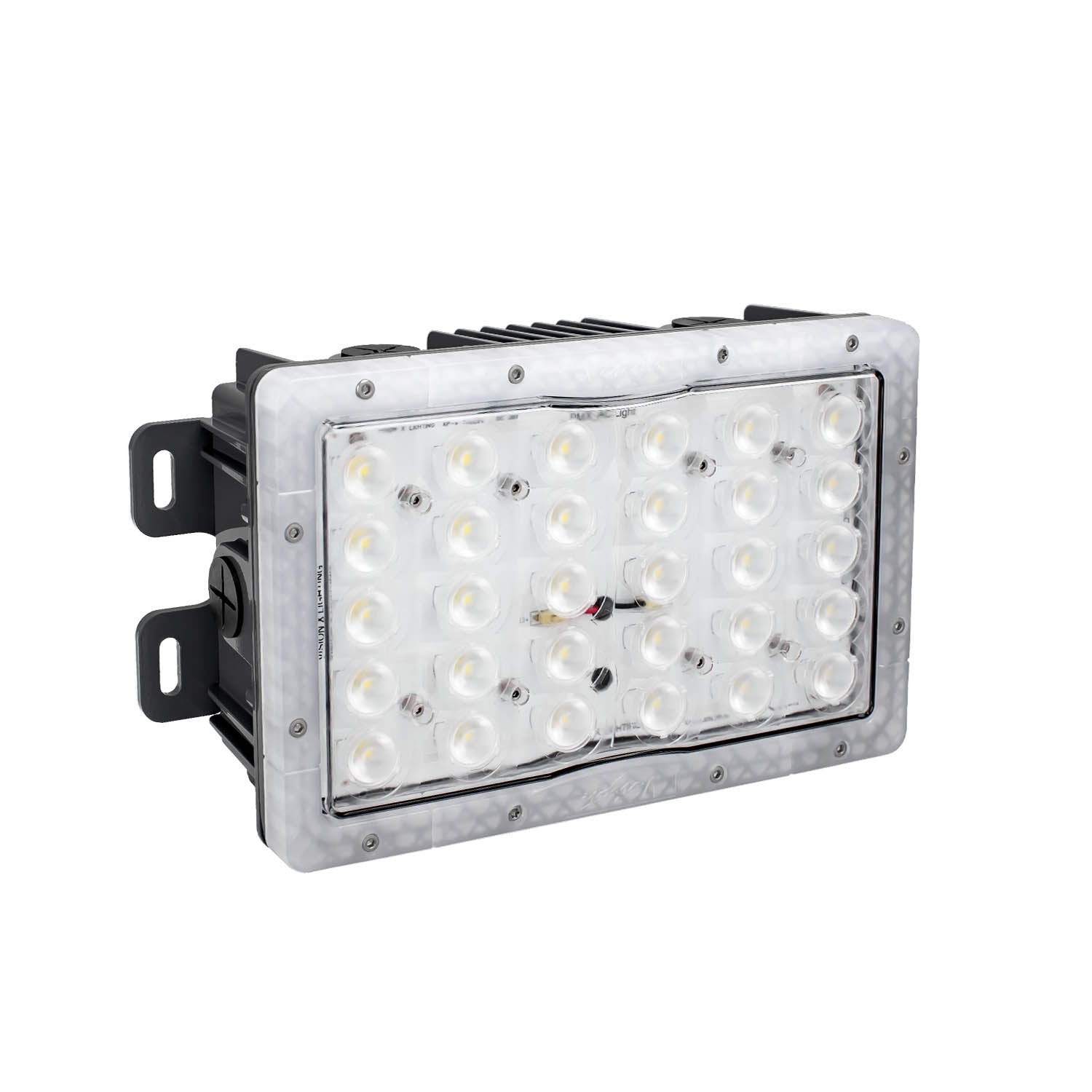

The Junction Box AC 50W Heavy-Duty LED Flood Light delivers powerful, reliable illumination for over-door, perimeter, and small-area lighting applications in the world's harshest environments. Producing exceptional light output from an ultra-rugged housing, this versatile fixture is available with three optimized beam patterns—including an Ultra-Wide 180° Flood, 90° Wide Flood, and 60° Flood—allowing users to tailor light distribution to their specific application requirements.
Built to withstand extreme industrial conditions, the Junction Box AC 50W features three mounting configurations to suit a wide range of installations, including a compact surface mount, a standard trunnion bracket rated to 15 Grms vibration, and a heavy-duty stainless steel bracket capable of withstanding up to 60 Grms vibration. Available in both 90–277 VAC and 180–528 VAC voltage options, the fixture is ideal for global deployments and heavy industrial power systems. Its robust double powder-coated finish provides outstanding resistance to corrosion and salt-water exposure, making it a dependable lighting solution for mining operations, marine vessels, commercial buildings, and demanding industrial facilities.
Key Features:
Three Optimized Beam Patterns
Available in Ultra-Wide 180°, 90° Wide Flood, and 60° Flood optics to provide the ideal balance of coverage and intensity.
Flexible Mounting Solutions

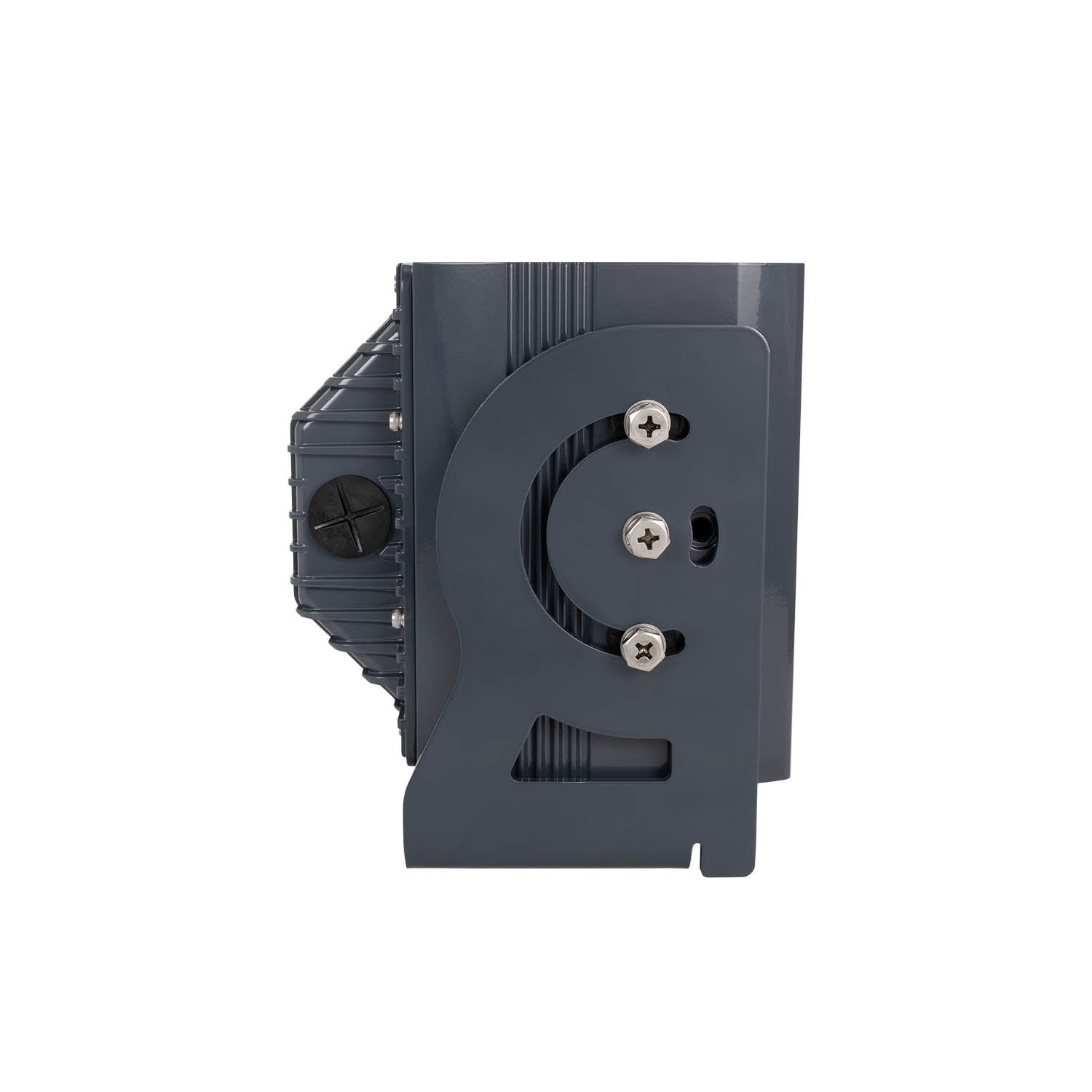

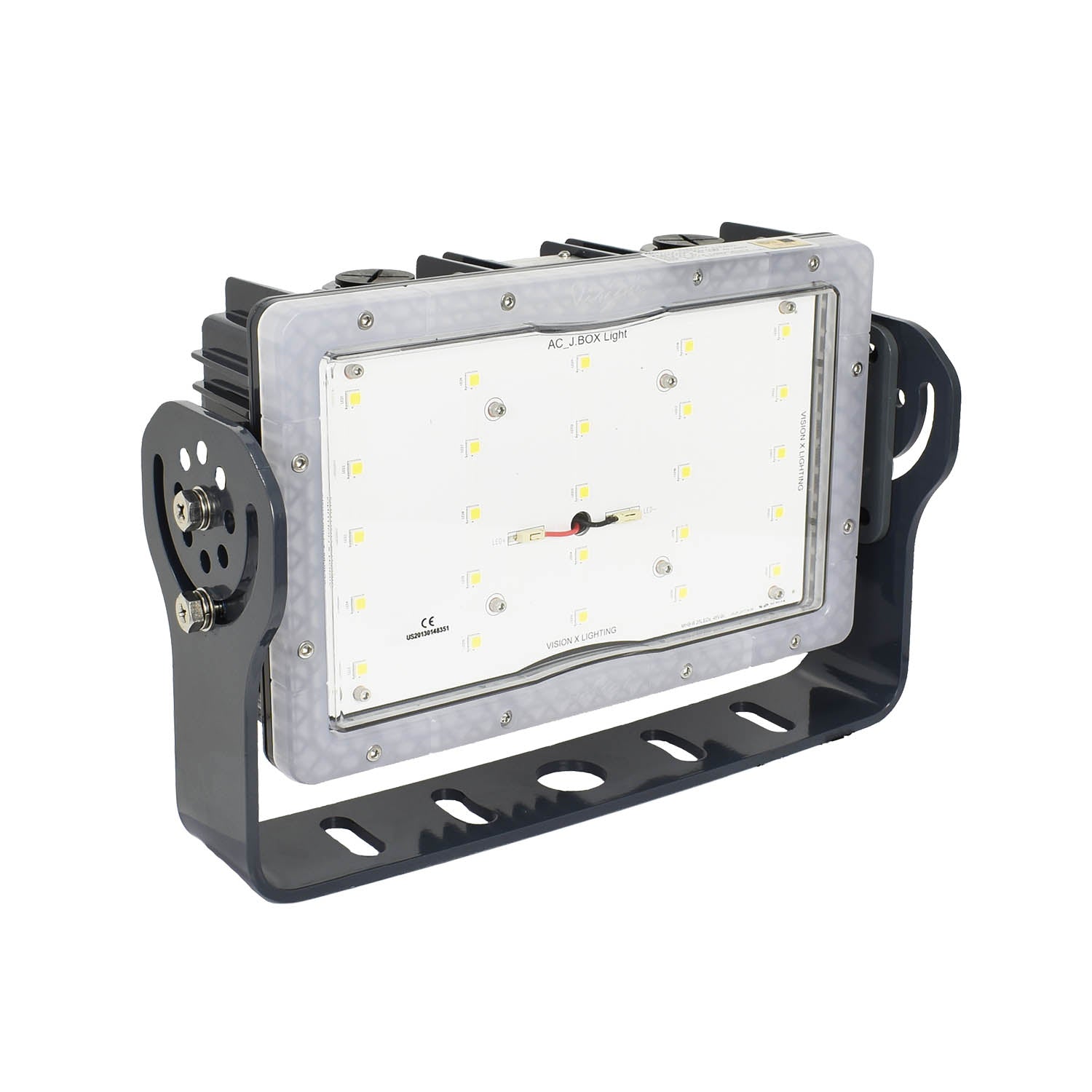

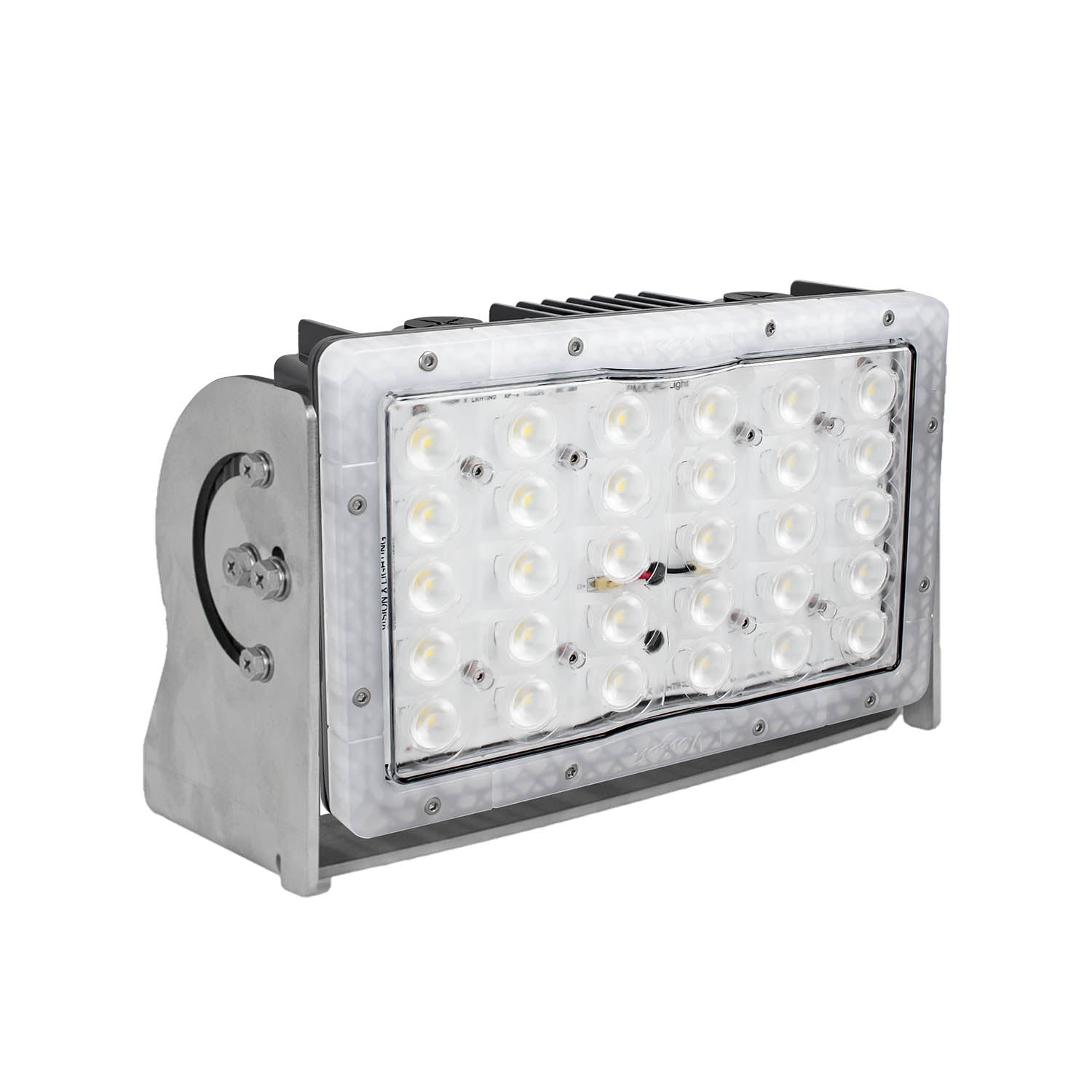

Choose from surface mount, standard trunnion (15 Grms rated), or heavy-duty stainless-steel brackets rated for up to 60 Grms vibration environments.
Dual Voltage Compatibility
Offered in standard 90–277 VAC and high-voltage 180–528 VAC configurations for worldwide industrial applications.
Superior Corrosion Resistance
Durable double powder-coated housing withstands salt-water exposure, chemicals, and harsh outdoor conditions.
Built for Extreme Industries
Engineered for mining, heavy industrial equipment, commercial facilities, marine applications, and other demanding environments.
Specifications
LED's: MHB-B(CREE)
Watts: 50W
Amp Draw: .43A @ 115V AC, .22A @ 230V AC, .18A @ 277V AC
Raw Lumens: 7,000 lm
Beam Pattern: Ultra-Wide Flood 180°
Connector: 3/4″ NPT
Color Temperature: 5000K
Operating Voltage: 90-305V AC
Fixture Size: 13x7.09x3.33"
Fixture Weight: 8.38 lbs
Certifications: IP68 / IP69K, CISPR 25
Warranty: 3 years
What’s Included
(1x) Junction Box AC 50W Light
(1x) Mounting Brackets (Varies by Selection)
