When we set out to build the Cannon Race Series (CR-Series), we wanted a light that was smaller, lighter, and brighter than anything we’d run before—and that’s exactly what we came up with. The CR-Series is our next step up from the Cannon Gen 2, packing more punch in a compact, low-profile housing that’s built to take a beating. With a simple 2-wire setup, these lights are as straightforward as it gets in true Vision X fashion: Wire them up, hit the switch, and turn night into day.

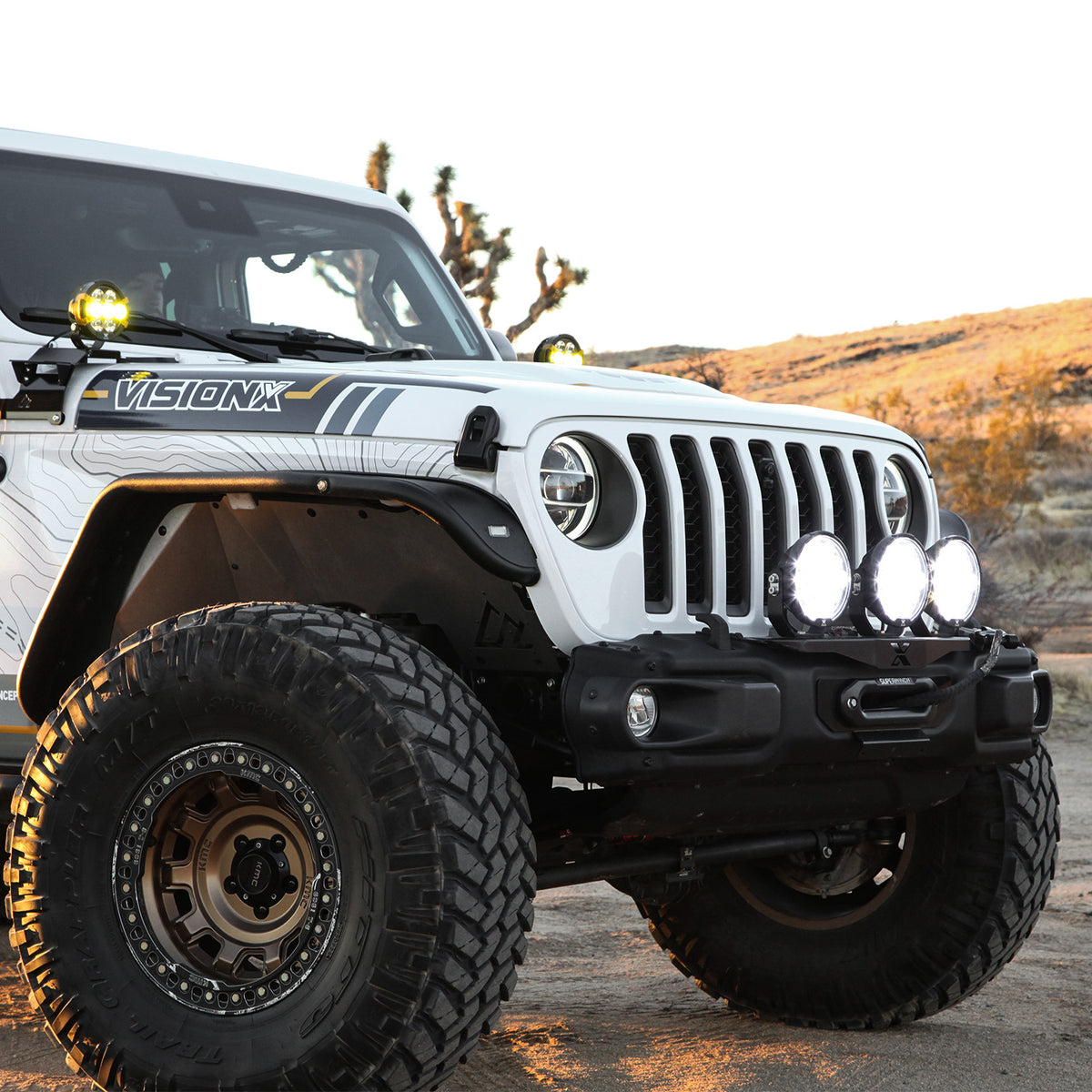

Whether you’re running an overland rig loaded for weeks on the road, a weekend warrior hitting local trails, or a purpose-built off-road race vehicle, the CR-Series has a size and setup to match. Available in 3.5”, 4.5”, and 6.7” pods, the lineup is versatile enough for daily use or all-out competition. The 3.5" even doubles as an SAE-approved fog light—a true plug-and-play upgrade if you want to ditch your factory fogs without any hassle. Every option uses TIR optics, giving you max beam performance and a sleek blackout style when the lights are off.
The low-profile housing is tough enough for any trail, and these lights deliver the best beam distance per dollar you’ll find. If you like options, the selective yellow lenses cut through fog, dust, and snow with ease.
Effortless Installation & Wiring
All CR Series driving light kits includes a dual-function harness that enables plug-&-play installation and easy switching. Fully sheathed and complete with relays and a lighted rocker switch for a clean wiring job.
Key Features:
X-Drive LEDs 13,300 Lumens (ea)

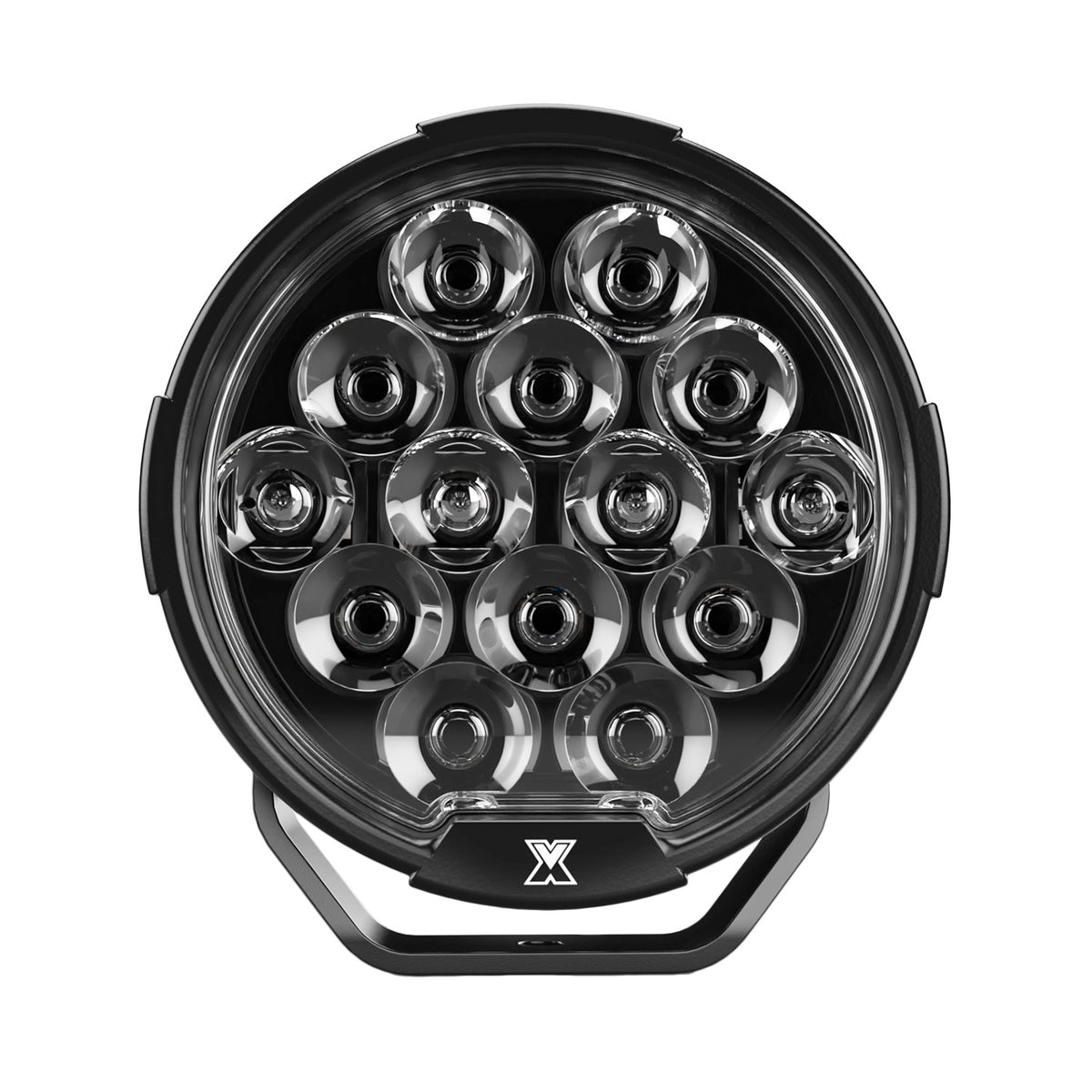

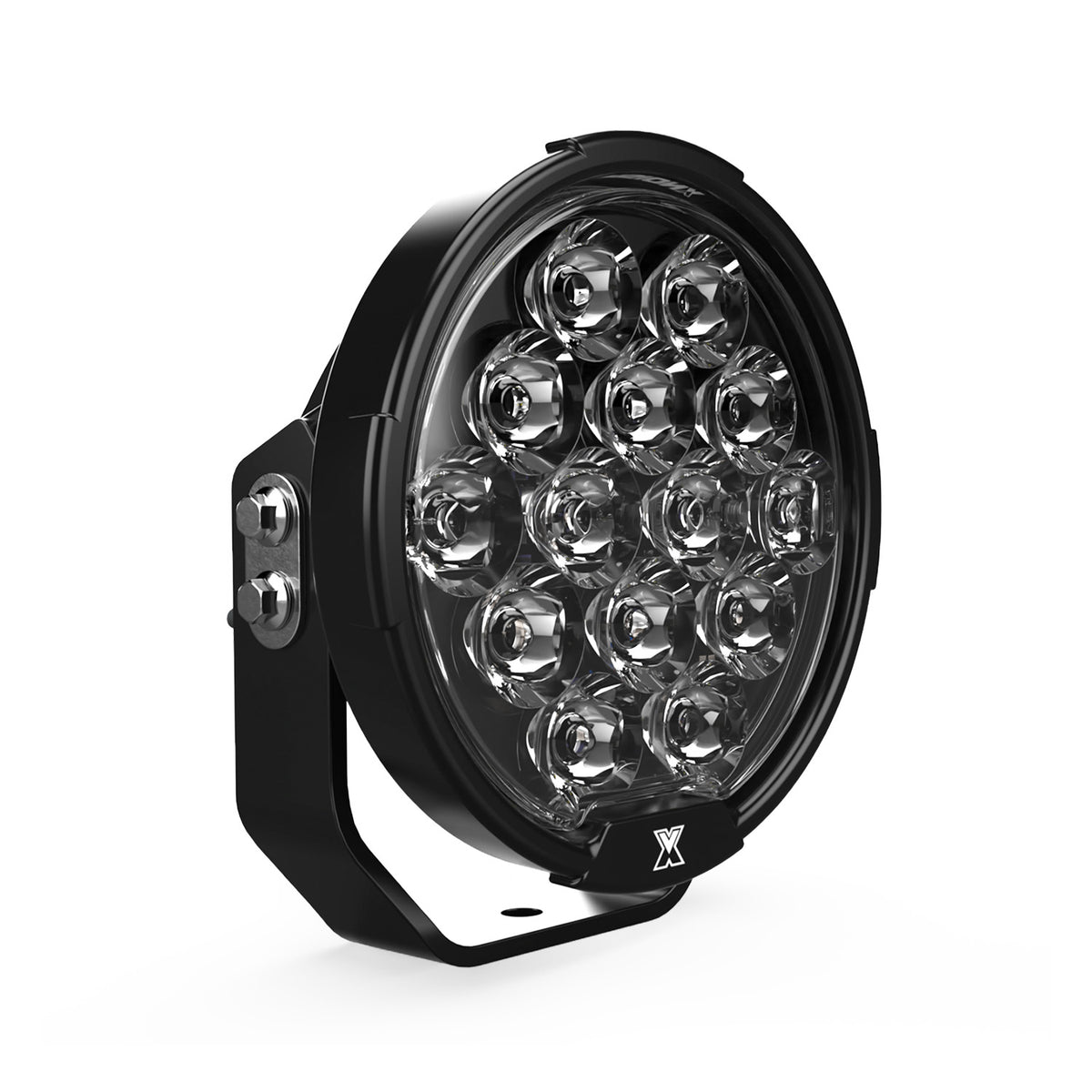

Fourteen 9-Watt LEDs combined with our proprietary TIR optics make the CR-14 produce a powerful broad spot beam.
Oversized TIR Optics
TIR Optics distribute the beam of light more efficiently than traditional reflector optics for unmatched intensity.

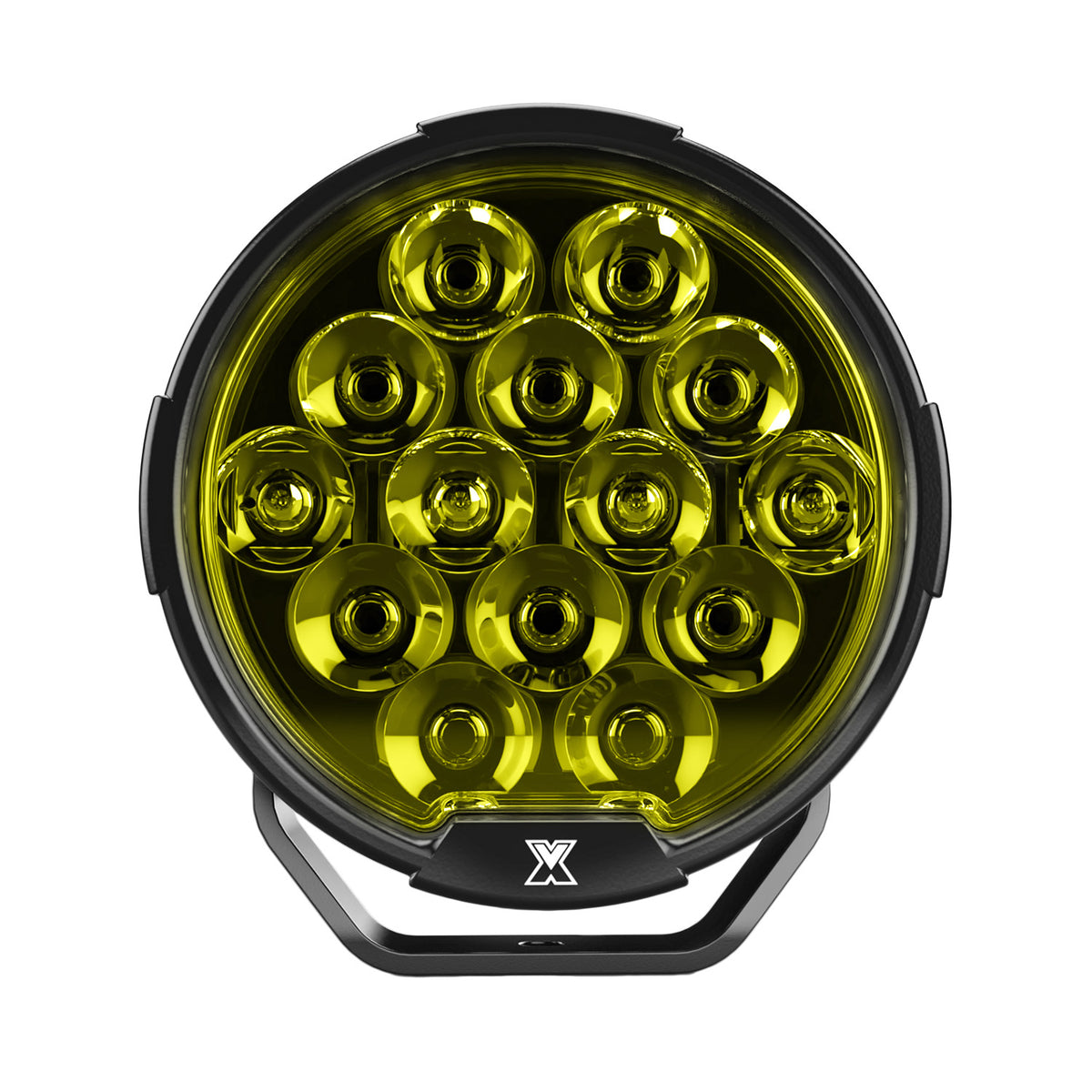

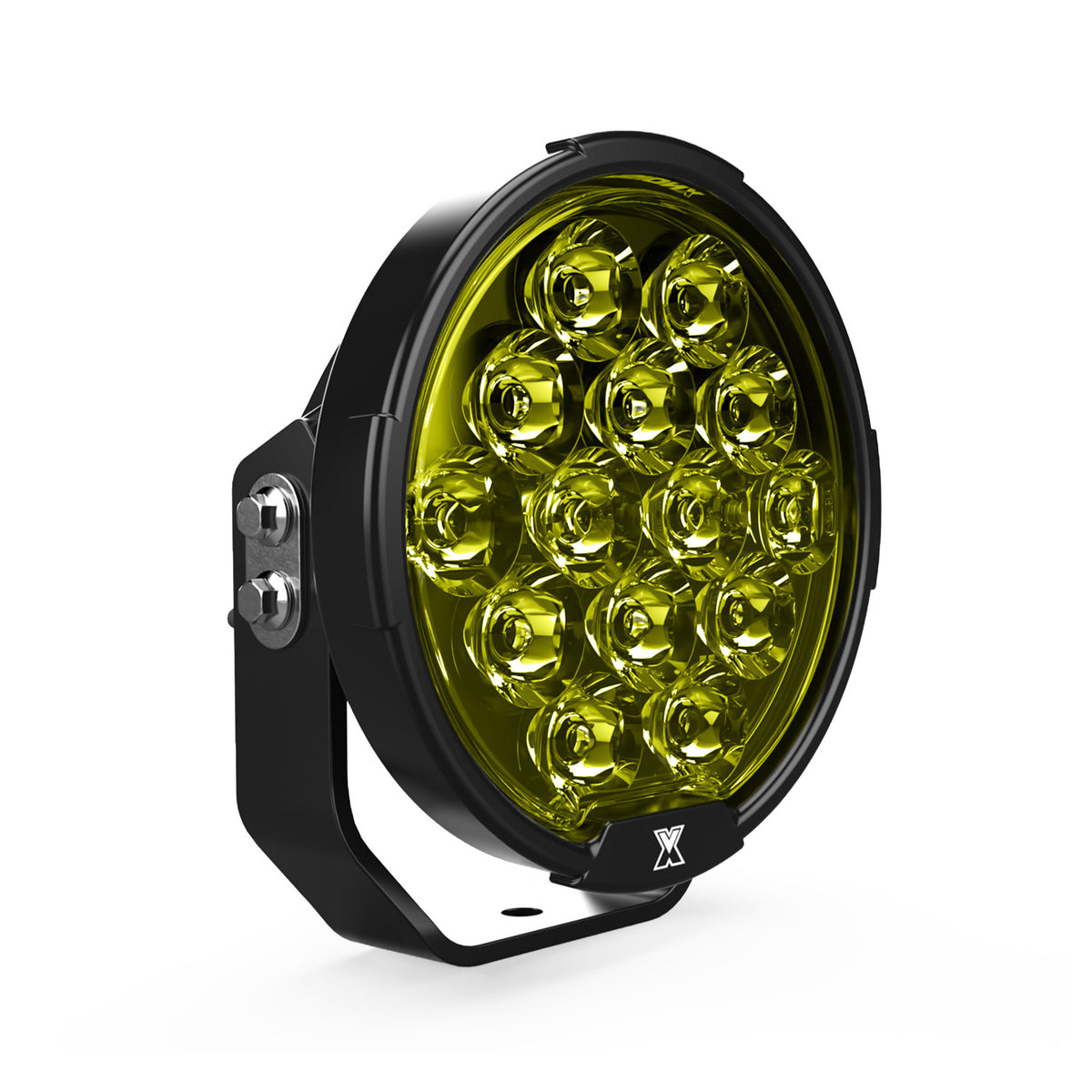

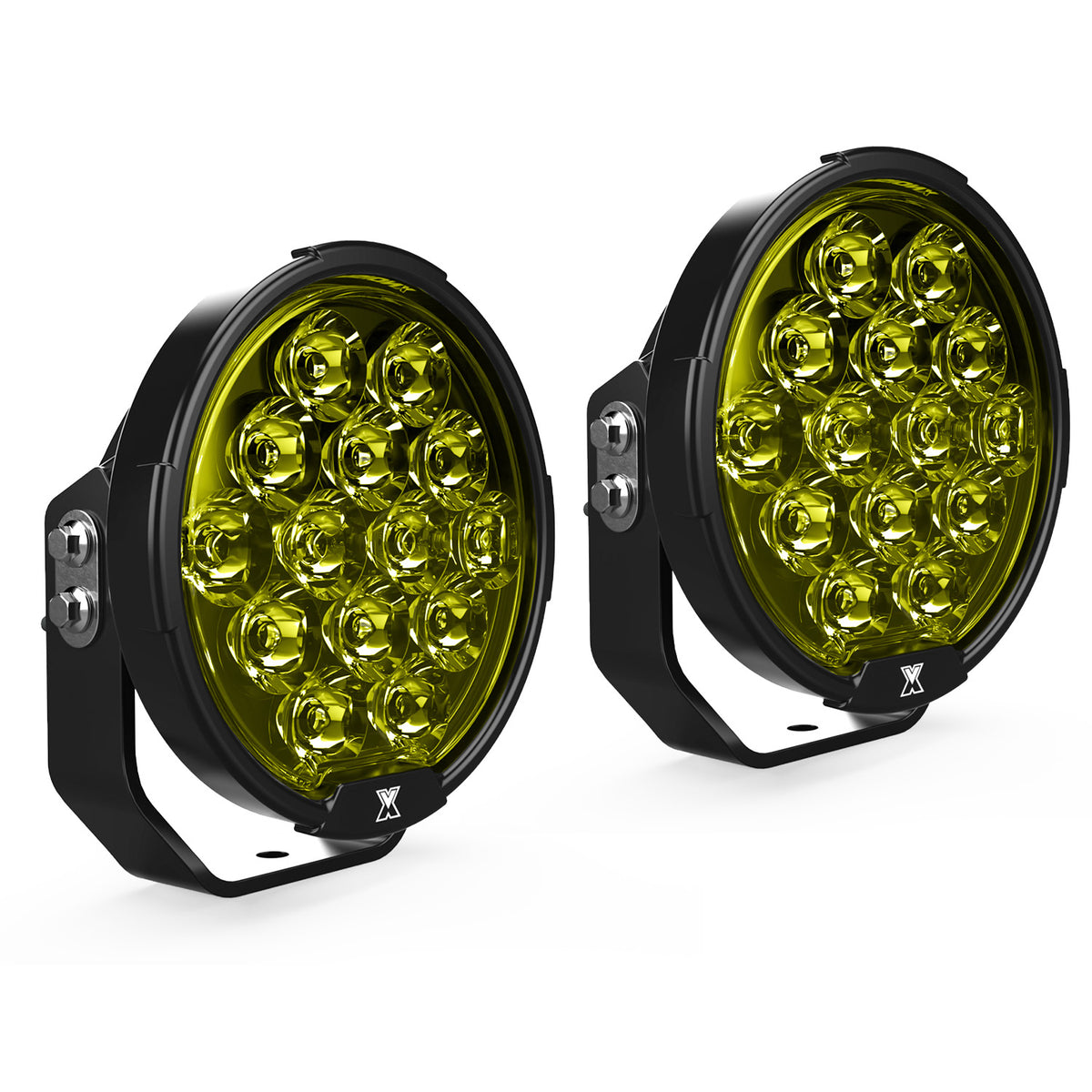

Selective Yellow Lens Options
Defy the dust, rain, and snow with our full selective yellow lens options that maintains maximum output while boosting clarity during harsh driving conditions.
DrySeal Technology
Equipped with our patented DrySeal technology, the CR-14 housing ensures a dust proof and watertight seal.
Durability DNA
The 5mm thick four-bolt trunnion coupled with our die cast double coated housing puts the CR-14 in a durability class of its own.
What’s Included
Single light pods include:
(1x) Light Pod w/ Mounting Hardware
(1x) 2-wire pigtail

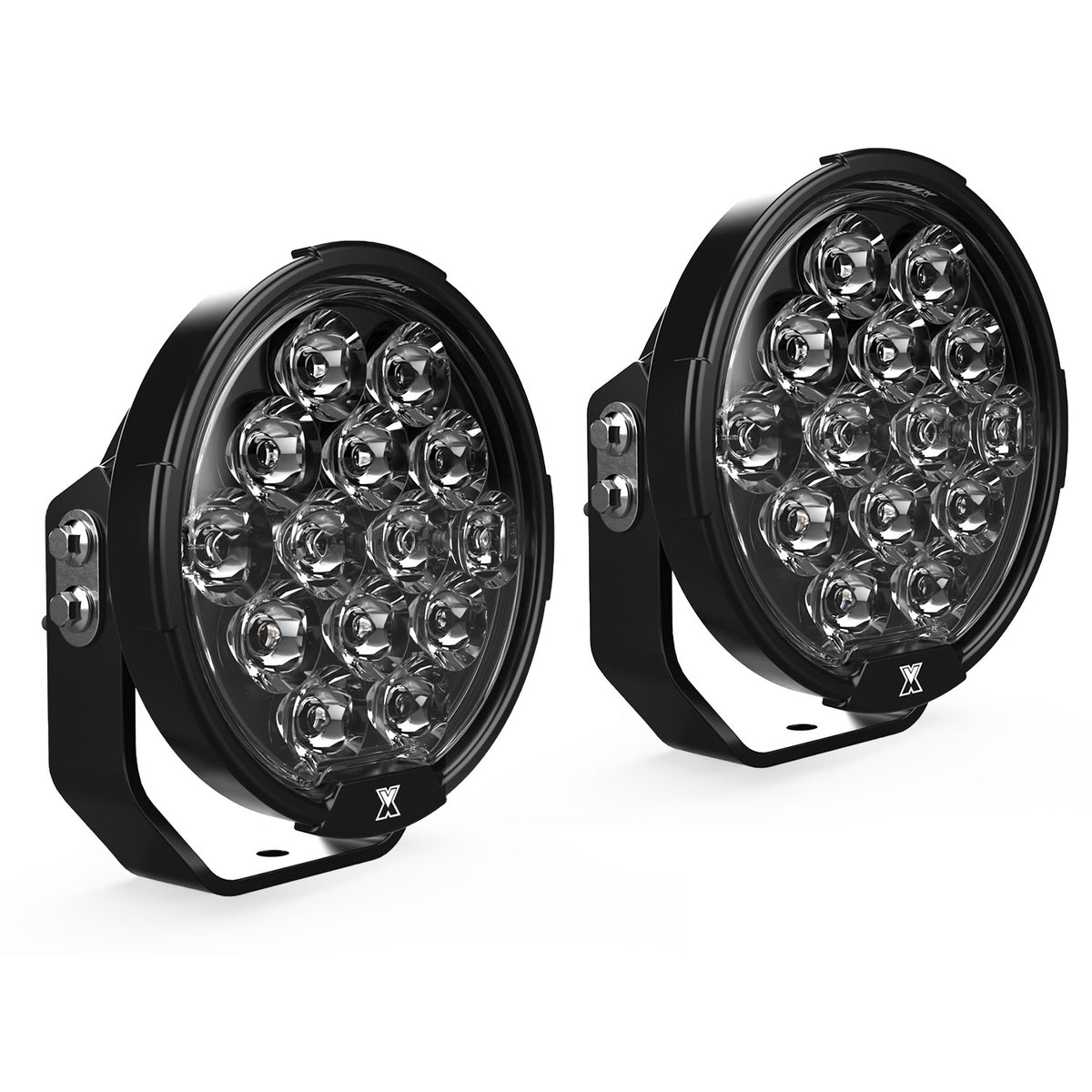

Pair of light pods (Kit) include:
(2x) complete light pods
(1x) 2-light wiring harness
Item #'s: CR-14 | CR-14KIT | CR-14SY | CR-14SYKIT
LED's: |
Cree XML3 (9W each) |
Watts: |
126W | 252W |
AMP Draw |
10.5A | 21A |
Raw Lumens |
13,300 | 26,600 |
Beam Distance: |
1556' (474m) | 2,069' (630 m) |
Beam Width: |
177' (54m) | 235' (72m) |
Color Temperature: |
6000K |
Operating Voltage: |
9-32 VDC |
Pod Size: |
6.7" Round x 2.9" Deep |
Pod Weight: |
4.4 lbs | 8.8 lbs |
IP Rating: |
IP68 & 69K Waterproof Submersible & High-Pressure Spray |
EMC: |
CISPR 25, CE, UKCA Compliant |
Warranty: |
Limited Lifetime |
Click Here For Instructions (coming soon)
