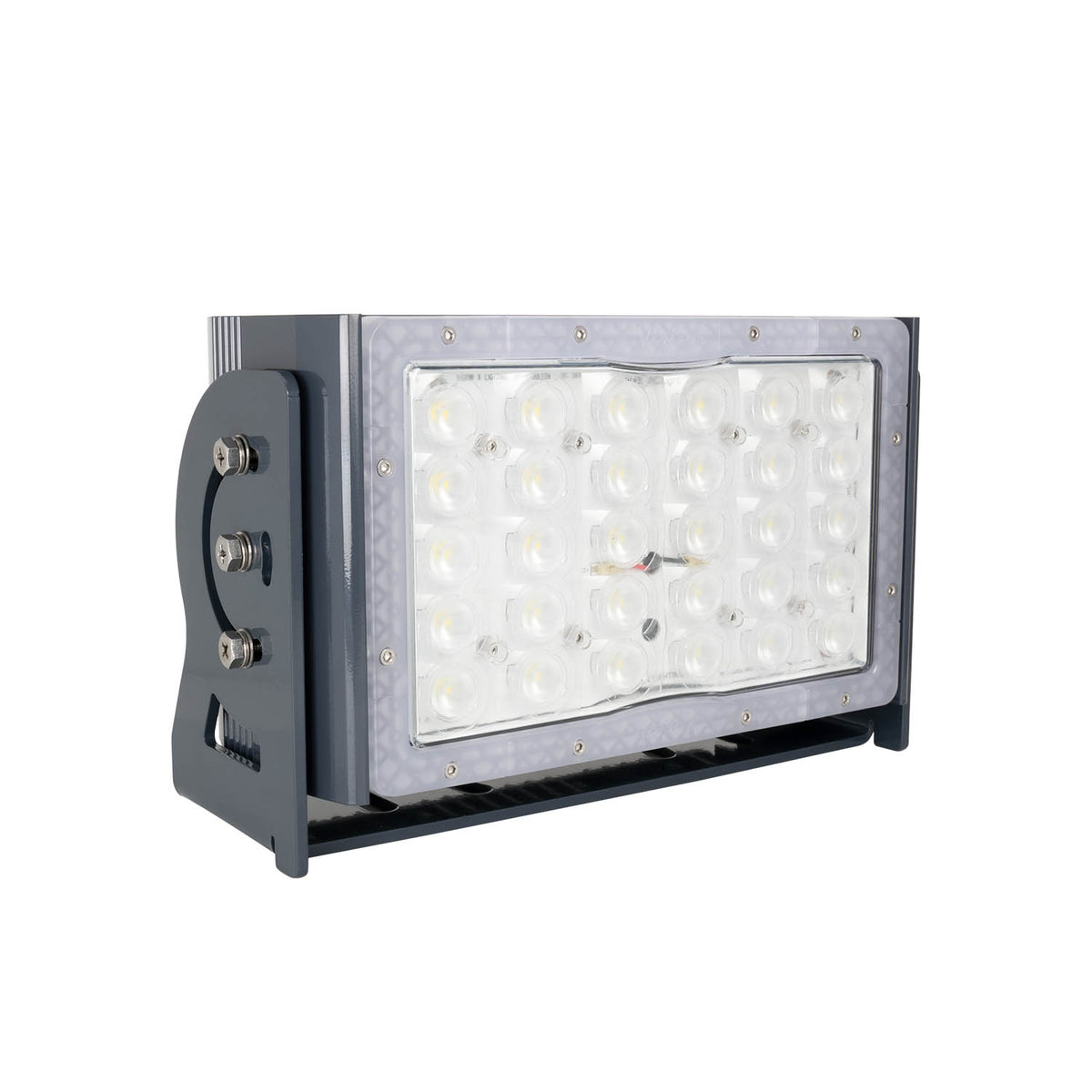

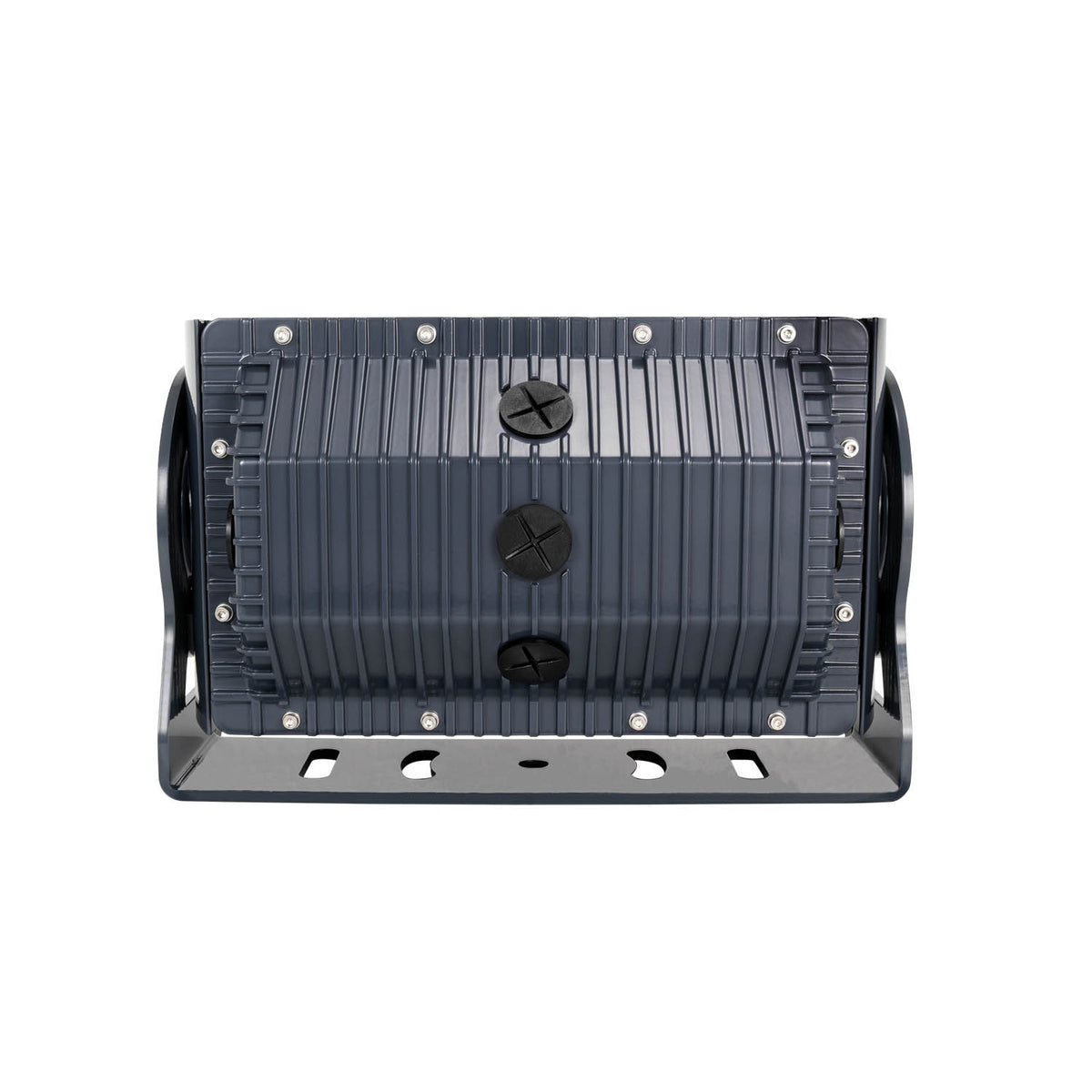

The Vision X PitMaster AC 140W Heavy Duty P&H Rope Shovel LED Flood Light is purpose-built to withstand the harsh operating conditions of mining environments while delivering exceptional illumination for P&H rope shovel applications. Engineered as a direct-fit replacement for P&H equipment, it features a robust mounting system with a custom aiming track that allows for precise beam positioning and simplified installation.

Producing an impressive 21,000 lumens, the PitMaster provides uniform, high-output illumination to improve visibility and productivity in critical work areas. Utilizing highly efficient LEDs that deliver industry-leading lumens per watt, the fixture maximizes light output while minimizing power consumption. To accommodate a variety of lighting applications, the 140W PitMaster is available with either a 60-degree flood beam pattern for broad area coverage or a 25-degree spot beam pattern for focused long-range illumination.

Designed to eliminate costly downtime, the PitMaster incorporates redundant circuit boards and inverters, ensuring continued operation even in the event of a component failure and significantly reducing unscheduled maintenance. The rugged housing is protected by a double-coated marine-grade powder coat finish for superior resistance against corrosion, abrasion, and the harshest environmental conditions. A sealed 3-pin quick-connect interface further streamlines installation and servicing, making the PitMaster a dependable lighting solution engineered specifically for demanding P&H shovel operations.

Key Features:

Direct-Fit P&H Mounting System

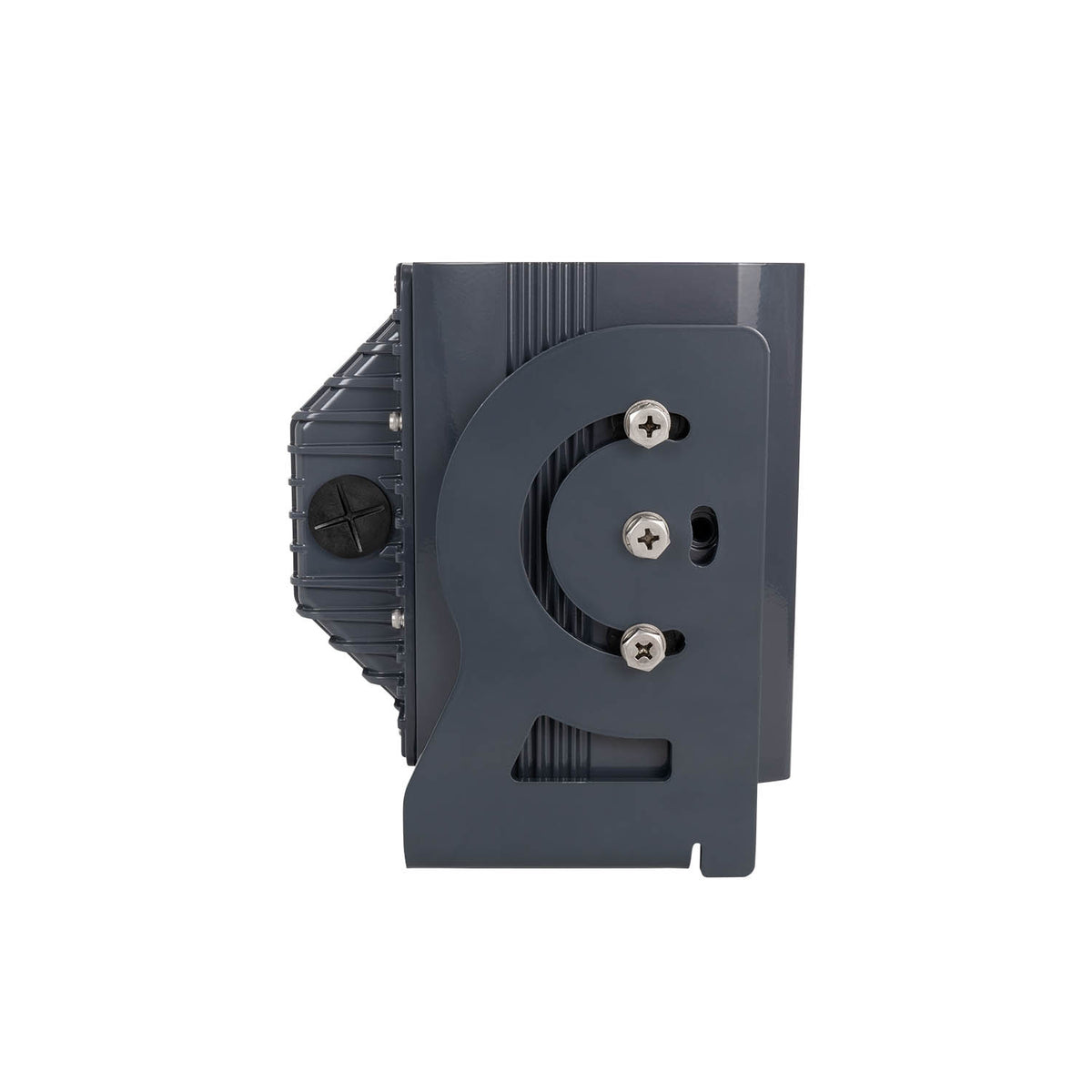

Purpose-built brackets with an integrated custom aiming track provide precise light positioning and a seamless installation on P&H rope shovel equipment.

Dual Beam Pattern Options
Available in a 60° flood beam for wide-area illumination or a 25° spot beam for enhanced throw distance and focused lighting performance.

High-Efficiency 21,000 Lumen Output
Advanced LED technology delivers exceptional illumination with industry-leading lumens per watt, maximizing visibility while minimizing power consumption.

Redundant Electrical Architecture
Dual circuit boards and inverters maintain light output in the event of a component failure, helping eliminate unscheduled maintenance and costly downtime.

Built for Harsh Mining Environments
A durable double-coated marine-grade powder coat finish offers superior resistance to corrosion, impact, and abrasive operating conditions.

Specifications

LED's: XP-LHD(CREE)
Watts: 140W
Amp Draw:  1.22A @ 115VAC, 0.61A @ 230VAC, 0.51A @ 277VAC
Raw Lumens: 21,000 Lumens
Beam Pattern: Spot 25°, Flood 60°
Connector: 3/4” NPT
Color Temperature: 6,000 Kelvin
Operating Voltage:  90-305V AC | HV 180-528V AC
Pod Size: 13.86"x7.17"x8.27"
Pod Weight:  24 lb
Certifications: IP68 / IP69K, CISPR 25
Warranty: 3 year

Downloads

Sales Sheet

What’s Included

-Pitmaster 140W Light
